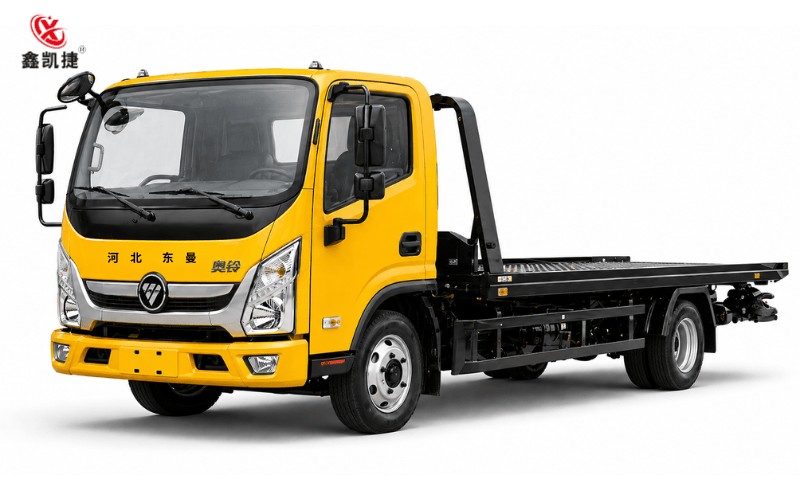

Cost-Efficient CNG Tow Truck | Aoling Dual-Fuel Recovery Vehicle Wholesale
- Dual CNG/Gasoline Fuel System
- 180L+180L CNG Cylinders
- 3,490mm Long Wheelbase
- Reinforced Chassis Frame
- Air Brake System
- Mechanical Suspension Driver Seat
- 7.00R16 Tires
- Wholesale Customization Available
Description

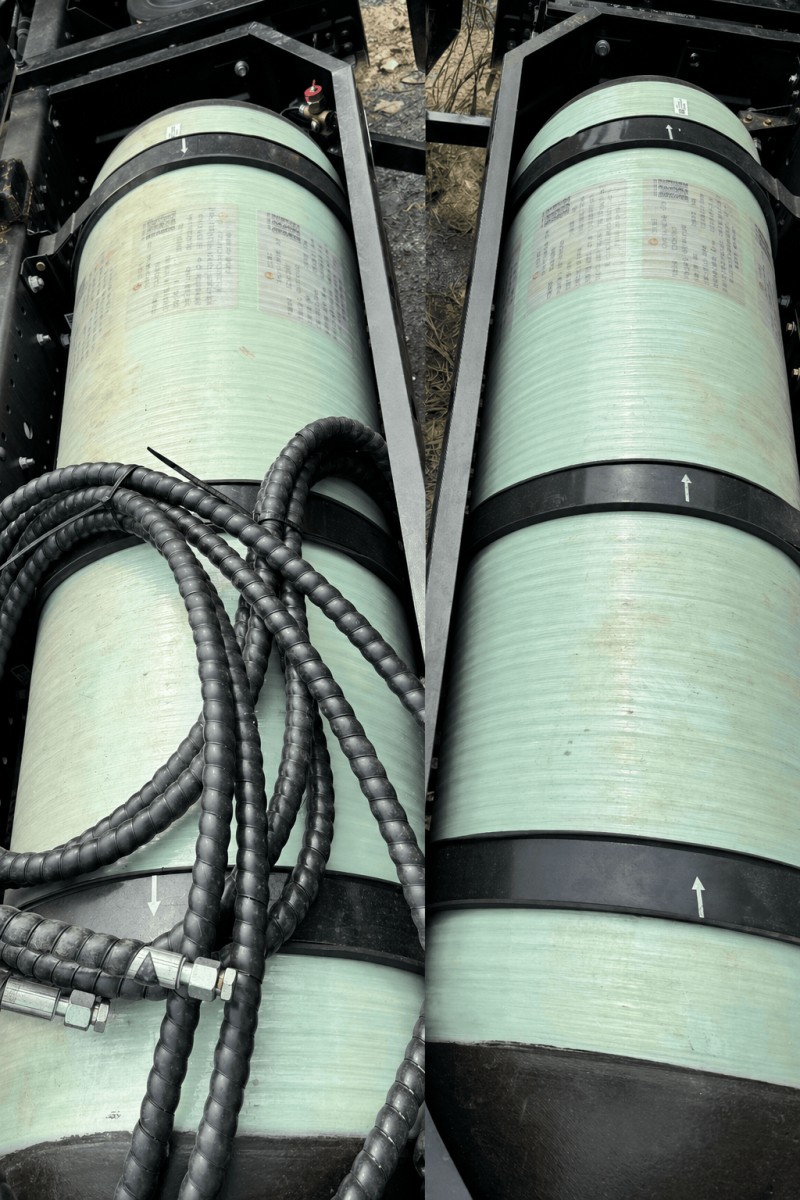

Dual CNG Cylinders 180 L + 180 L steel-lined hoop-wrapped cylinders for longer driving range
3,490 mm Long wheelbase for stable chassis performance and upper body installation
Reinforced Frame Dual-layer reinforced section for stronger load-bearing support

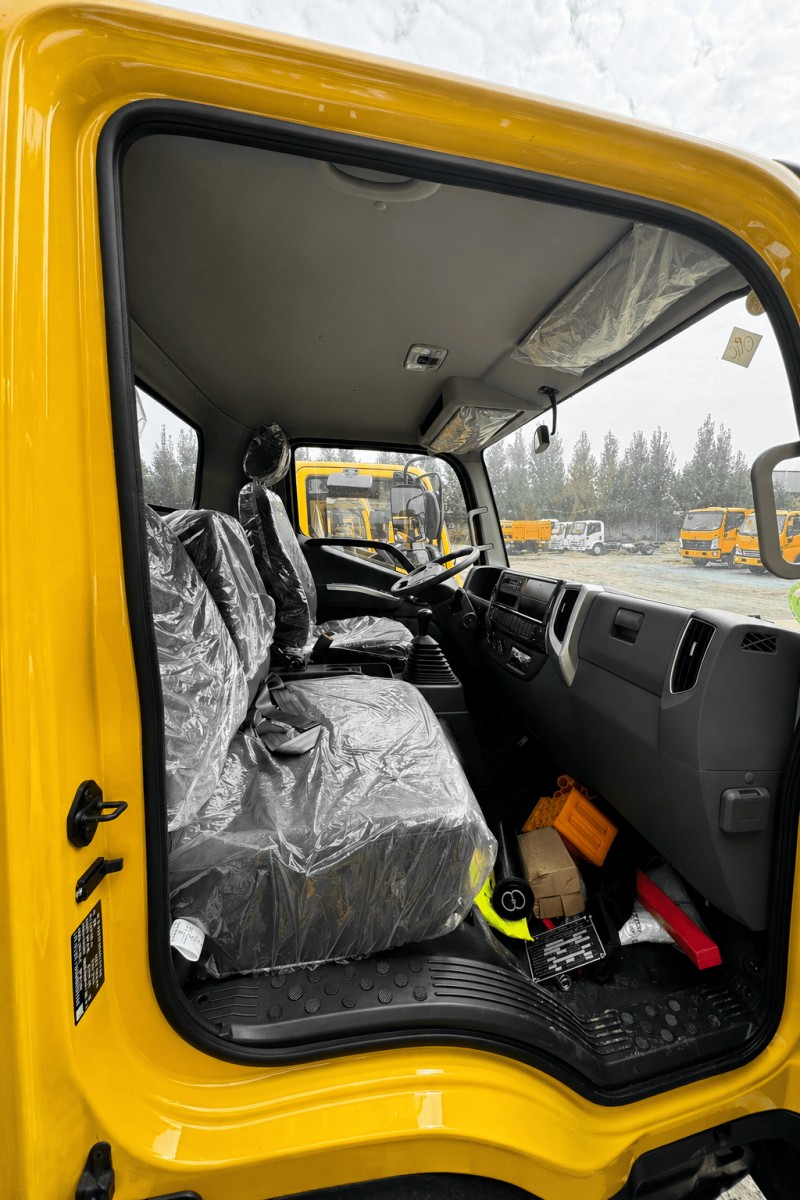

Cab Configuration
1,880 mm Wide Cab · Air Brake System
The 1,880 mm wide cab provides a practical and comfortable working space for daily operation. The air brake system offers reliable braking response for commercial transport and recovery applications.

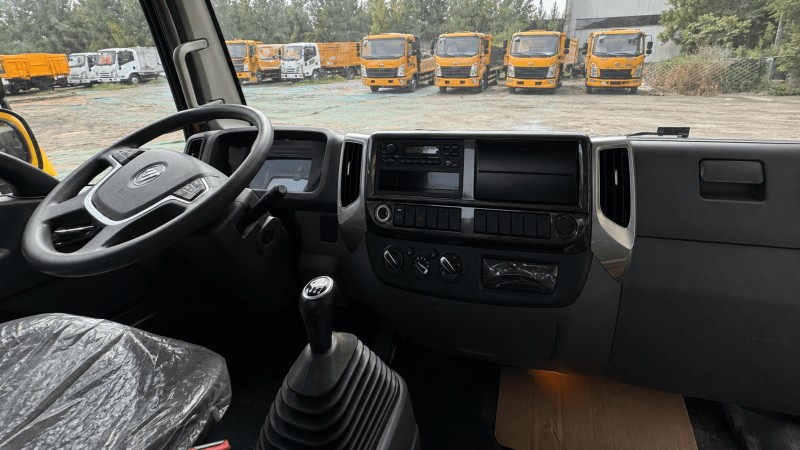

Multifunction Steering Wheel · Central Locking · Power Windows
The multifunction steering wheel improves driver convenience by integrating frequently used controls. Central locking and power windows enhance daily usability and cabin comfort.
Mechanical Suspension Driver Seat
The mechanical suspension seat helps absorb road vibration, reducing driver fatigue during long-distance transport or frequent urban operation
Chassis & Frame Configuration

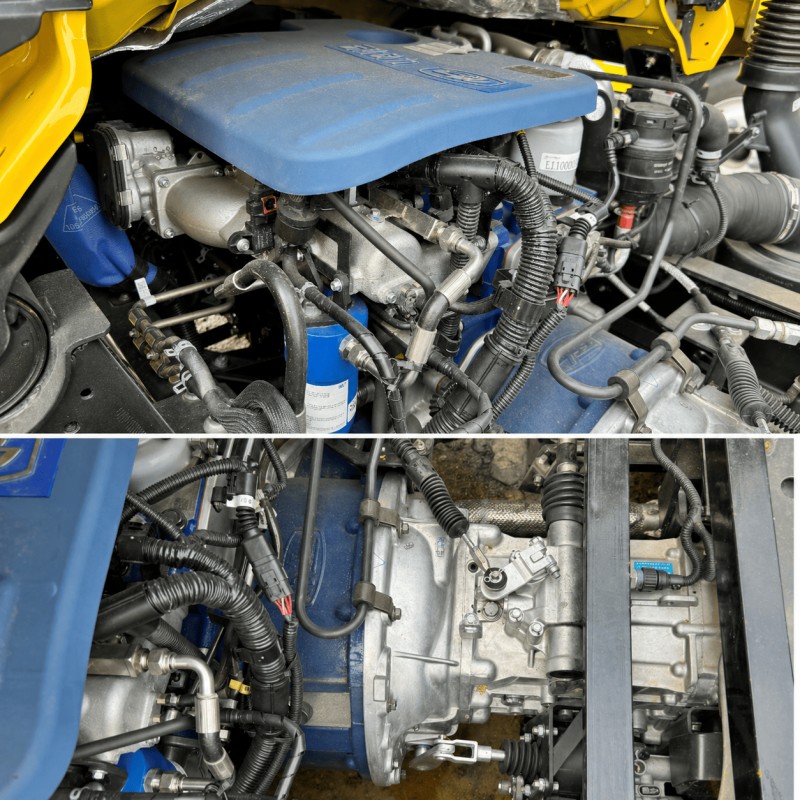

Yunnei YNG130-NF1 CNG Engine
Powered by the Yunnei YNG130-NF1 natural gas engine, this chassis delivers stable power output with lower fuel cost, making it suitable for urban logistics, regional transport, and light-duty recovery bodies.
Wanliyang WLY6GS46 6-Speed Gearbox
The Wanliyang WLY6GS46 6-speed manual gearbox provides smooth shifting and stable power transmission, helping the vehicle maintain efficient performance under different load conditions.
15 L Petrol Tank + 180 L + 180 L CNG Cylinders
The 15 L petrol tank is used for starting and backup fuel support, while the dual CNG cylinders provide extended natural gas capacity for longer operating range and lower daily fuel expenses.

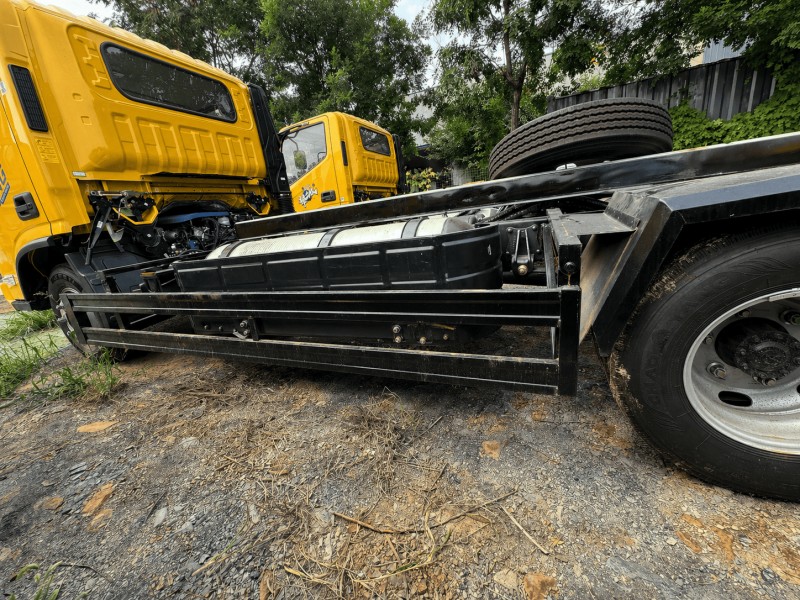

Reinforced Frame · 180 mm Height · 800 mm Frame Gap
The chassis uses a reinforced frame design with a 180 mm frame height and 800 mm frame gap, providing a solid foundation for upper body installation and stable load-bearing performance.
3,490 mm Wheelbase
The 3,490 mm wheelbase improves chassis stability and provides enough installation space for cargo bodies, flatbed bodies, and light-duty recovery applications.

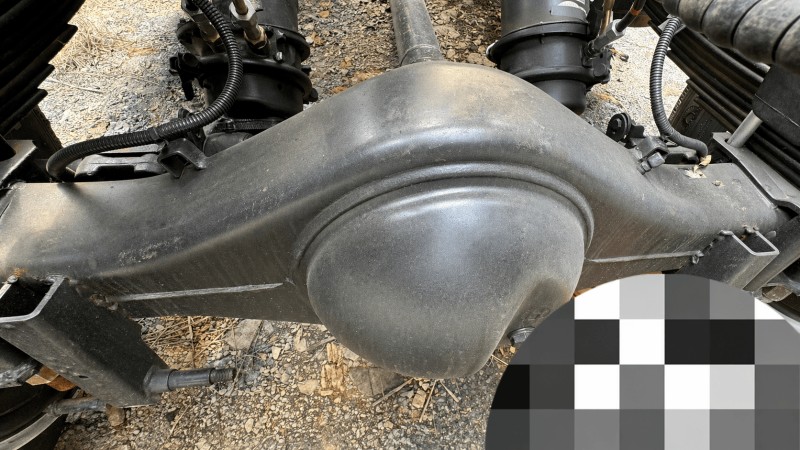

Rear Axle Ratio 4.333
The 4.333 rear axle ratio balances driving force and fuel economy, making the truck suitable for city roads, regional routes, and medium-load transportation.

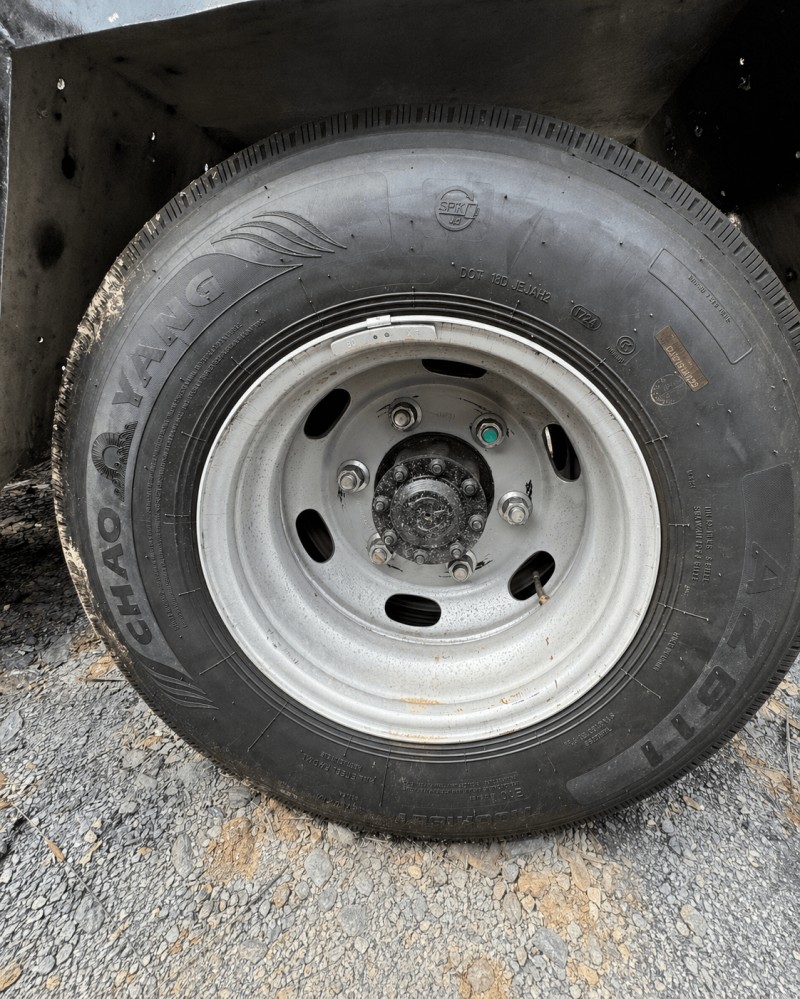

7.00R16 Tyres
The 7.00R16 tyres provide reliable road contact and practical load support for daily commercial use.
Full Chassis Specifications
| Cab Width | 1,880 mm |
|---|---|
| Brake System | Air brake system |
| Cab Features | Multifunction steering wheel, central locking, power windows |
| Driver Seat | Mechanical suspension driver seat |
| Engine | Yunnei YNG130-NF1 CNG engine |
| Transmission | Wanliyang WLY6GS46 6-speed manual gearbox |
| Petrol Tank | 15 L |
| CNG Cylinders | 180 L + 180 L steel-lined hoop-wrapped cylinders |
| Wheelbase | 3,490 mm |
| Track Width | 1,590 mm |
| Frame Height | 180 mm |
| Frame Gap | 800 mm |
| Frame Structure | Reinforced dual-layer section |
| Rear Axle Ratio | 4.333 |
| Tyres | 7.00R16 |
Need FOB Price & Shipping Cost?
Send us your destination port, required upper body type, and intended application. We will recommend the right chassis and body configuration with a detailed quotation.
