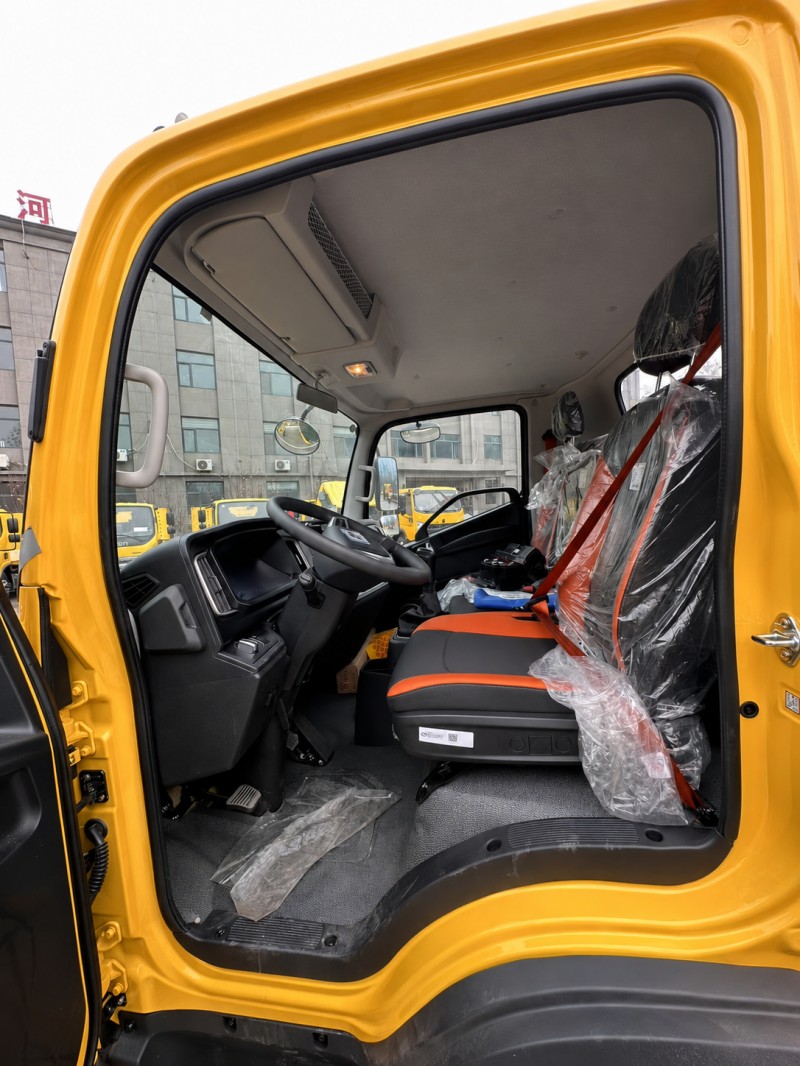

The wide-body cab provides better driving comfort and more interior space for long-distance recovery work. It is equipped with a folding sleeper, factory A/C, and power windows for daily commercial use.

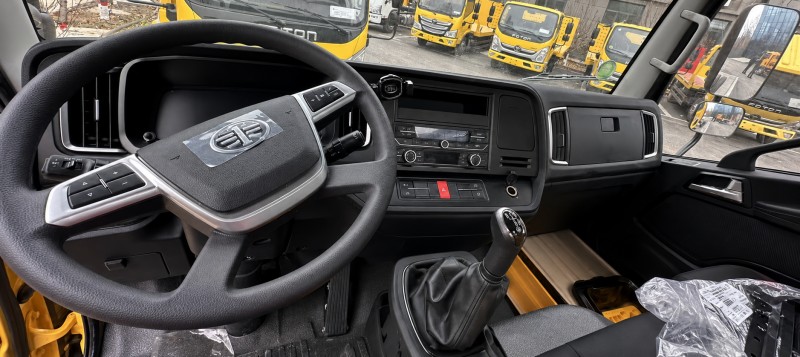

The LCD instrument panel, multifunction steering wheel, and cruise control help improve driving convenience. The exhaust brake offers better control on downhill roads and loaded recovery operations.

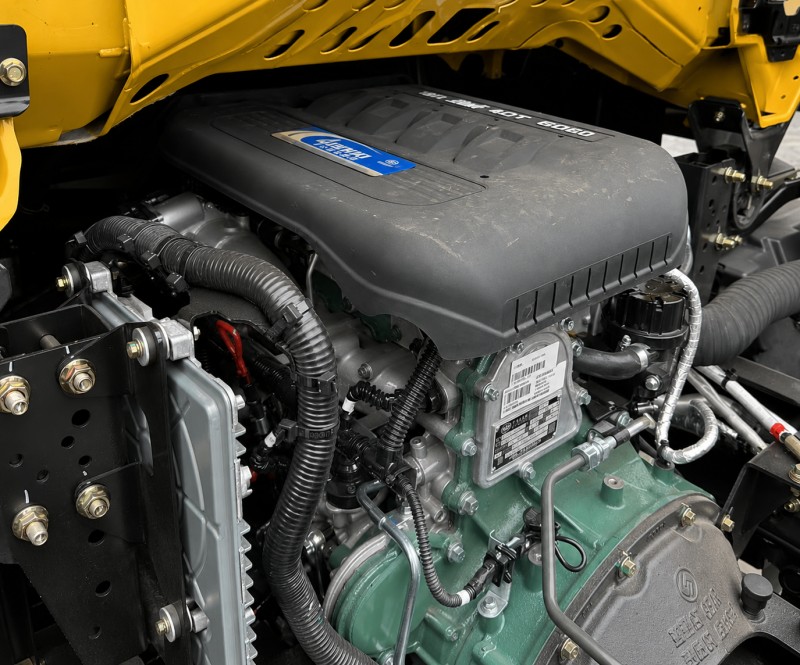

The 4-valve Xichai engine delivers strong torque output for vehicle recovery, equipment transport, and uphill driving. It is suitable for customers who need stronger power and higher load capacity.

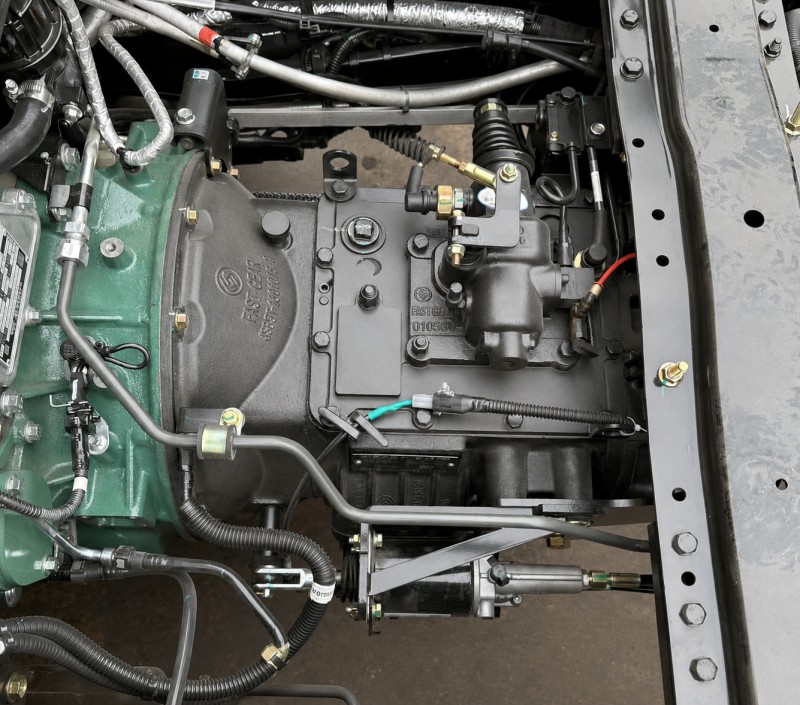

The FAST 8J75 gearbox gives the driver more gear options for different road conditions, making it easier to handle loaded driving, towing, and daily recovery tasks.

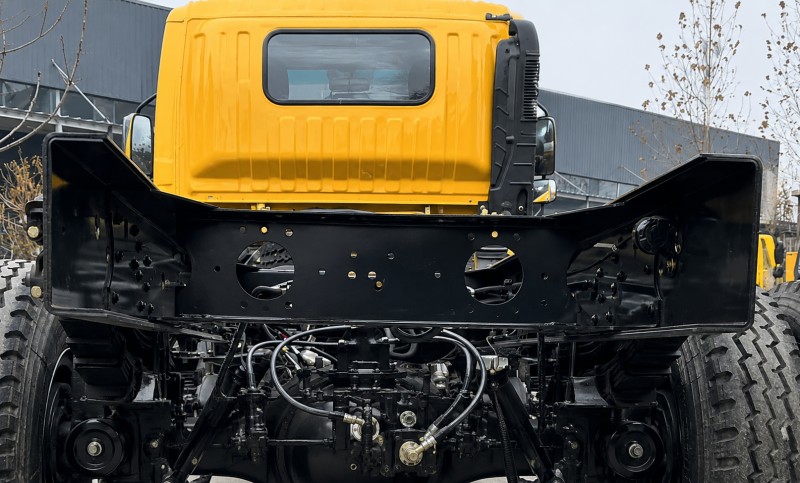

The reinforced straight double-layer chassis frame improves structural strength for heavy-duty flatbed installation. The 865 mm frame gap provides a stable base for customized upper body mounting.
The widened 2.30 m wheel track and 3,800 mm wheelbase help improve driving stability, especially when carrying vehicles, small machinery, or heavy recovery loads.

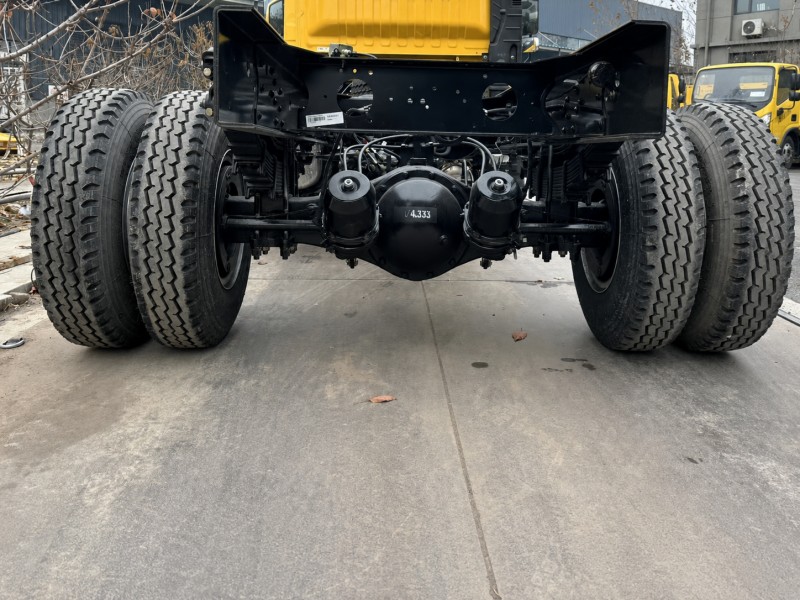

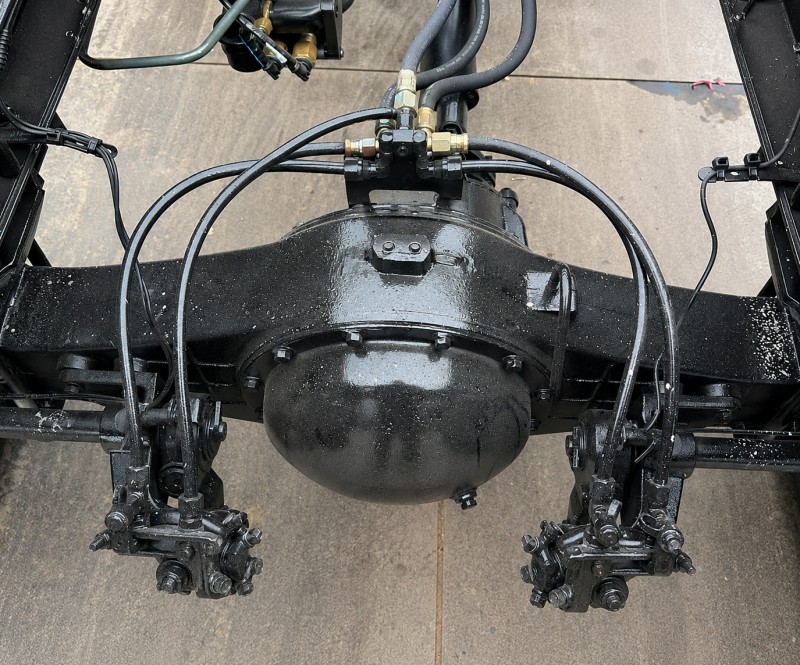

The 9T-class 350 rear axle provides stronger load-bearing capacity. Gear ratios 4.333 and 4.875 are available to match different customer requirements for speed, pulling power, and road conditions.
| Cab | Jiefang J6F 2050 mm wide-body cab |
|---|---|
| Cab features | LCD dashboard, exhaust brake, multifunction steering wheel with cruise control, folding sleeper, factory A/C, power windows |
| Engine | Xichai 180 HP 4-valve engine |
| Torque | 500 N·m |
| Transmission | FAST 8J75 gearbox |
| Wheelbase | 3,800 mm |
| Track width | 2,300 mm |
| Frame type | Straight double-layer chassis frame |
| Frame height | 220 mm |
| Frame gap | 865 mm |
| Rear axle | 9-ton class 350 rear axle |
| Gear ratio | 4.333 / 4.875 optional |
| Tyres | 750 / 825 tyres optional |

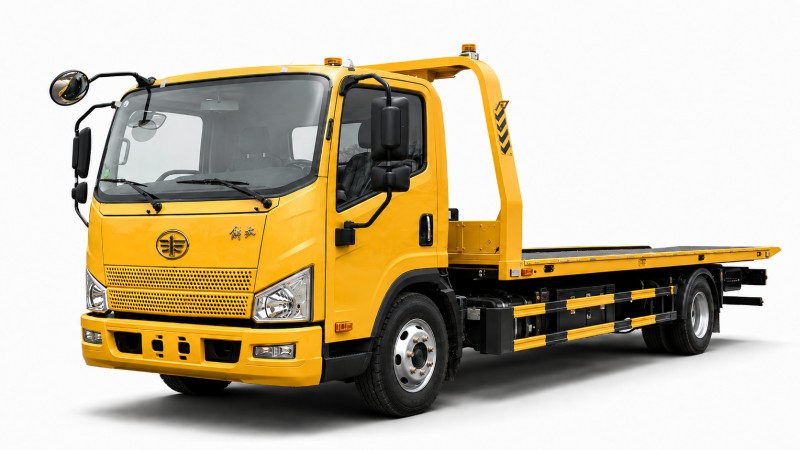

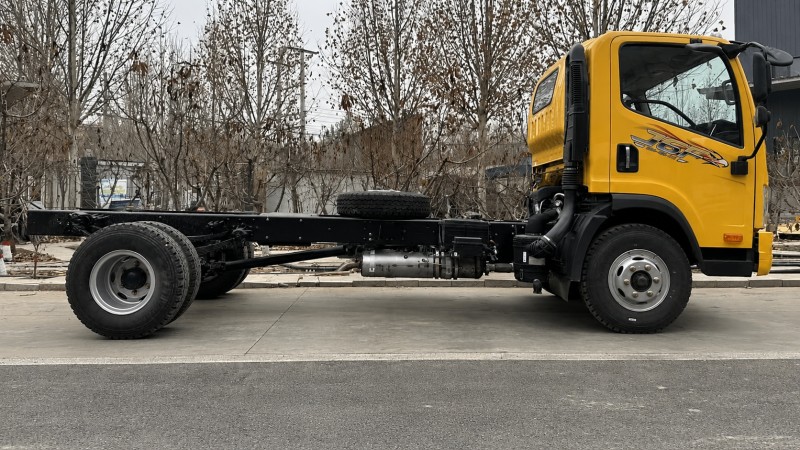

This Jiefang J6F wide-body chassis can be matched with a customized flatbed recovery upper body according to the customer's working scenario. It is suitable for vehicle rescue, road recovery, machinery transport, and commercial towing applications.
Suitable for heavy-duty flatbed recovery body installation
Extended 3,800 mm wheelbase for better platform stability
Reinforced double-layer frame for stronger body mounting
Optional tyre and gear ratio configuration for different markets
Custom platform, winch, rear underlift, and toolbox available
Send us your destination port, required platform capacity, and target application. We will recommend the suitable chassis and upper body configuration.
Contact on WhatsApp: +86 13730558288
