FAW Jiefang J6F Heavy-Duty Cab Truck | Reinforced Chassis Logistics Vehicle
- Weichai 160HP Engine
- 8-Speed High-Low Gearbox
- Reinforced Double-Layer Frame
- 7.5T Rear Axle
- 3600mm Long Wheelbase
- 2050 Wide Cab
- Factory PTO Ready
- Suitable for Logistics & Towing
Description
160 HP Weichai engine with 450 N·m torque for loaded towing and recovery work
7.5T Rear Axle Qingte 1080 rear axle for stronger load support and stable operation
3600 mm Long wheelbase matched with a wider track for recovery truck applications
Chassis Highlights
FAW Jiefang J6F 2050 wide cab
The 2050 mm wide cab gives the driver more space and better comfort during daily towing, roadside assistance, and vehicle transport work.

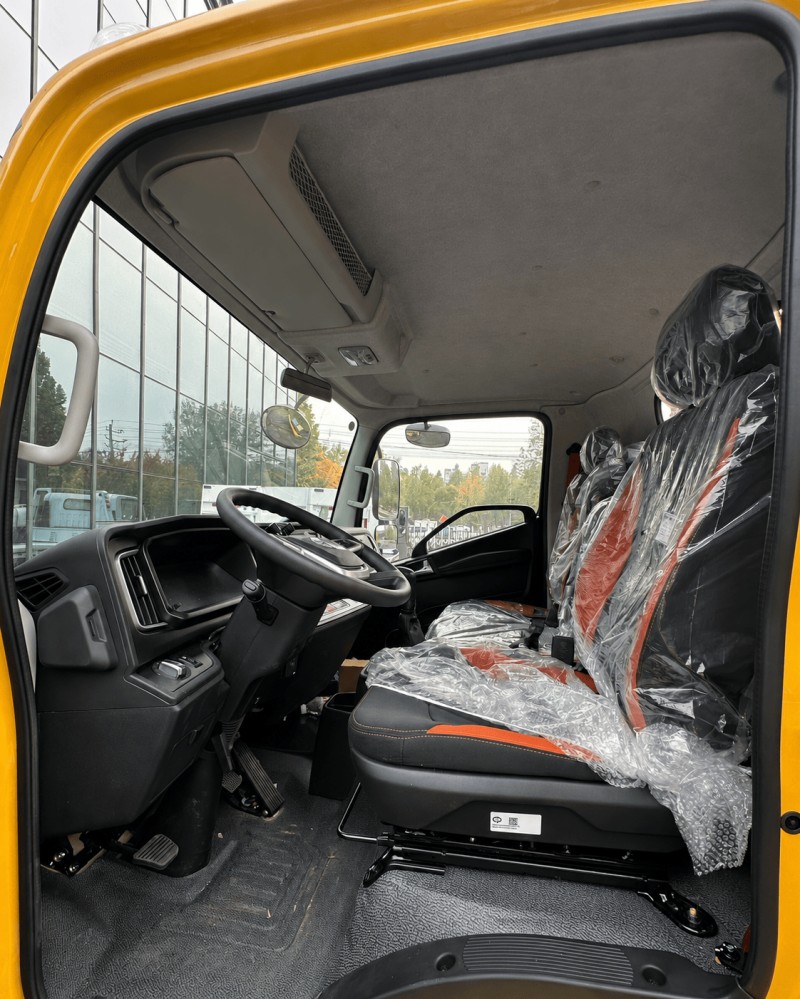

Comfortable driver-focused configuration

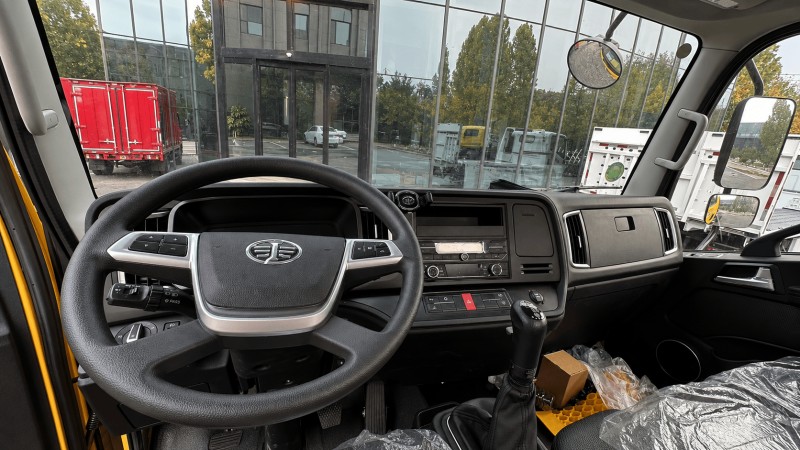

Central locking, power windows, multifunction steering wheel, phone holder, air suspension seat, factory A/C, and heated mirrors improve driving convenience and daily usability.

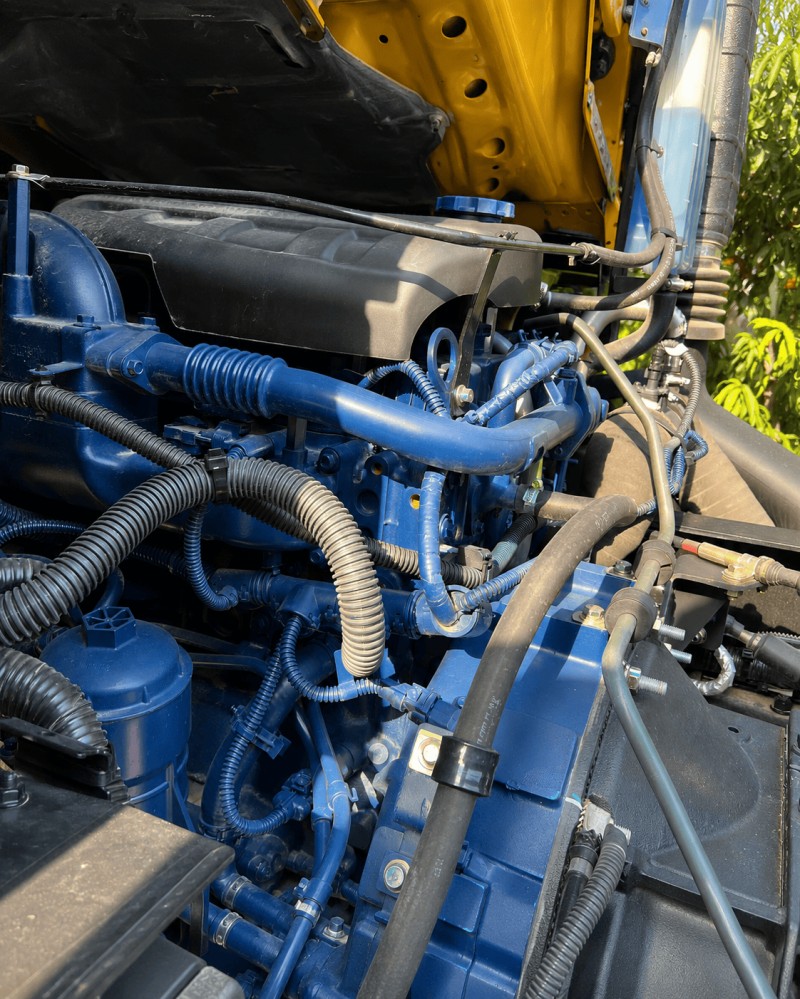

Weichai 160 HP engine with 450 N·m torque
The Weichai engine provides strong torque output for loaded recovery, uphill driving, and frequent start-stop towing operations.

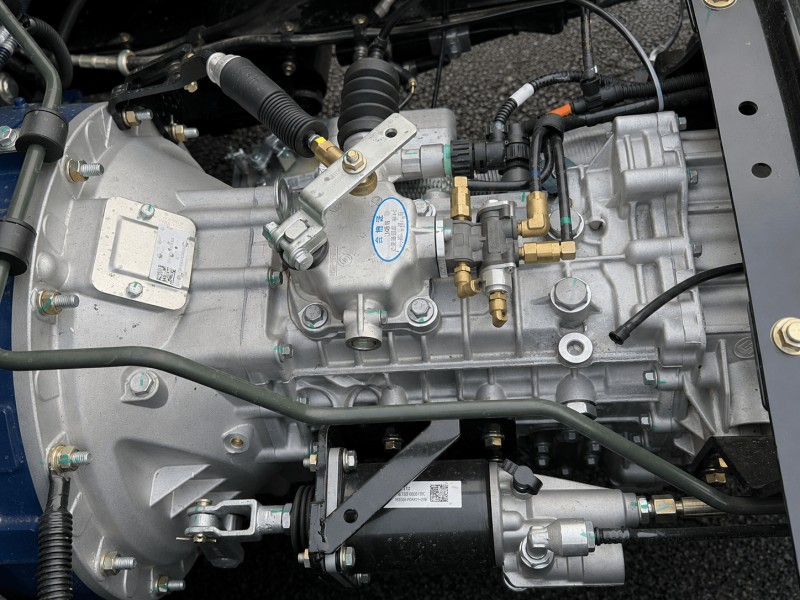

Fast 8-speed high-low gearbox
The Fast 8-speed high-low transmission offers more gear choices for different road conditions, helping balance pulling power, road speed, and fuel efficiency.

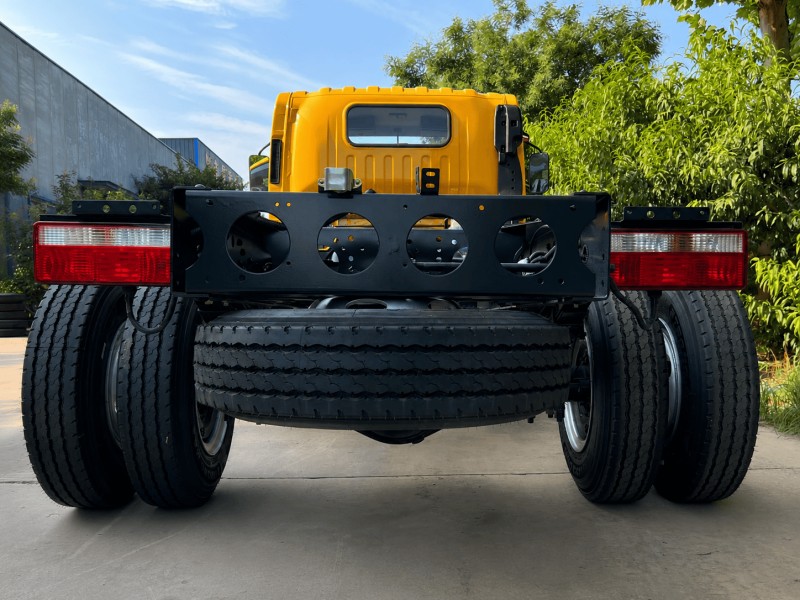

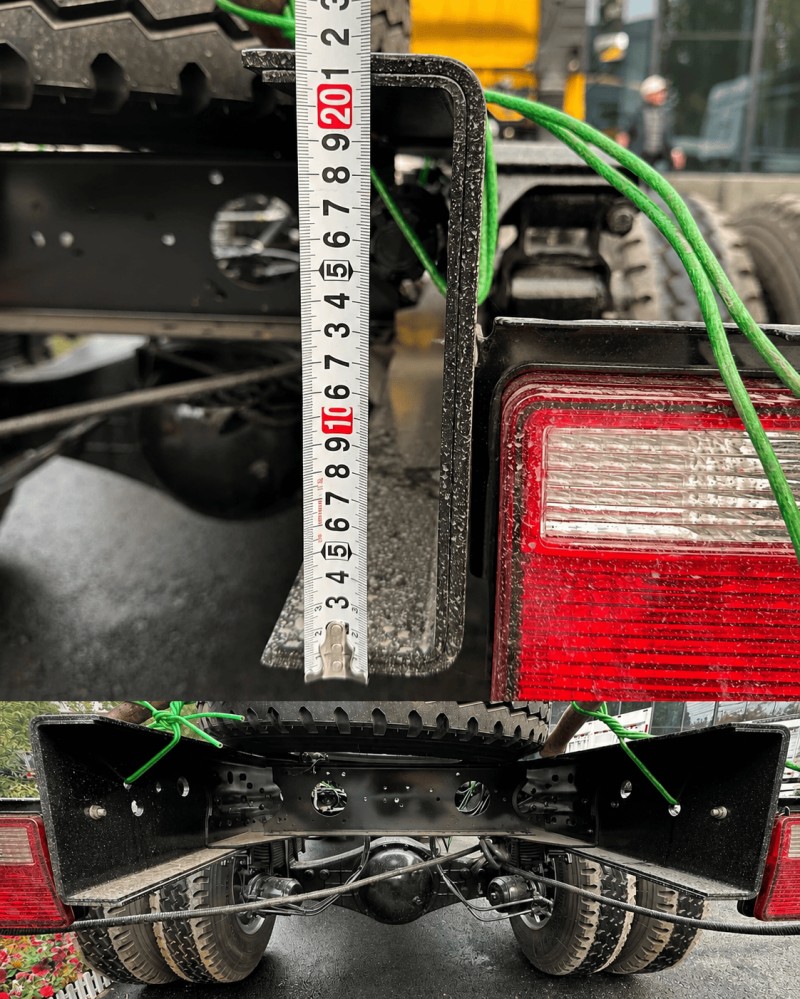

216 mm double-layer straight frame
The 216 mm high double-layer straight-through frame and 860 mm frame gap provide a strong chassis base for flatbed recovery body installation.

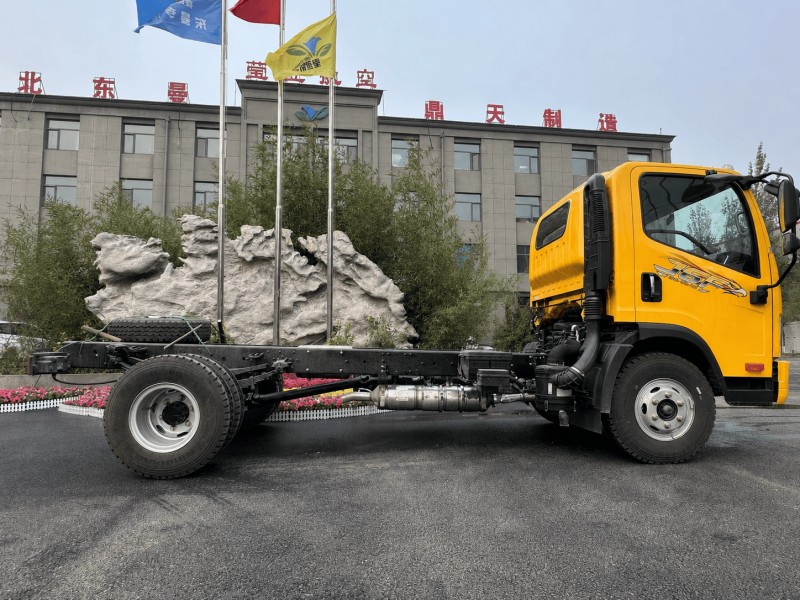

Wide stance for stable recovery operation
The 3600 mm long wheelbase and 2.26 m wide track help improve vehicle stability when loading cars, transporting equipment, or operating on uneven roads.
Factory PTO and recovery-ready chassis
The factory PTO makes the chassis suitable for hydraulic flatbed, winch, and rear underlift systems, helping reduce modification complexity.
Product Photos
Full Chassis Specifications
| Cab model | FAW Jiefang J6F 2050 wide cab |
|---|---|
| Engine | Weichai 160 HP |
| Torque | 450 N·m |
| Transmission | Fast 8-speed high-low gearbox |
| Fuel tank | 200 L aluminum alloy fuel tank |
| Wheelbase | 3,600 mm |
| Track width | 2,260 mm |
| Frame type | Double-layer straight-through frame |
| Frame height | 216 mm |
| Frame gap | 860 mm |

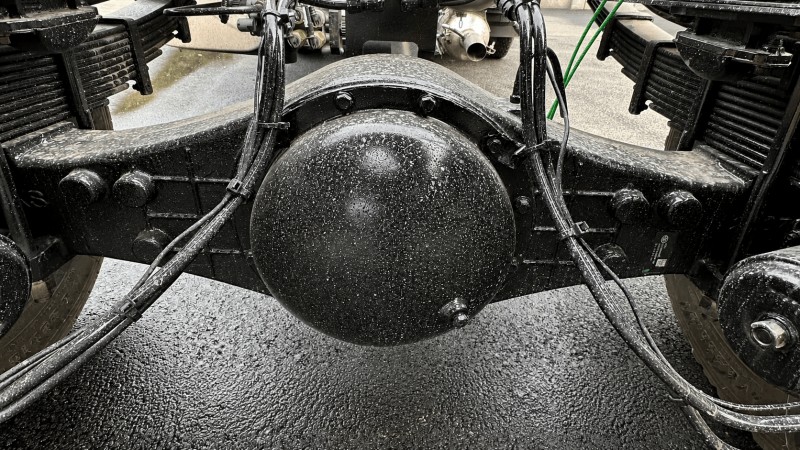

| Rear axle | 7.5T Qingte 1080 rear axle |
| Rear axle ratio | 4.333 |

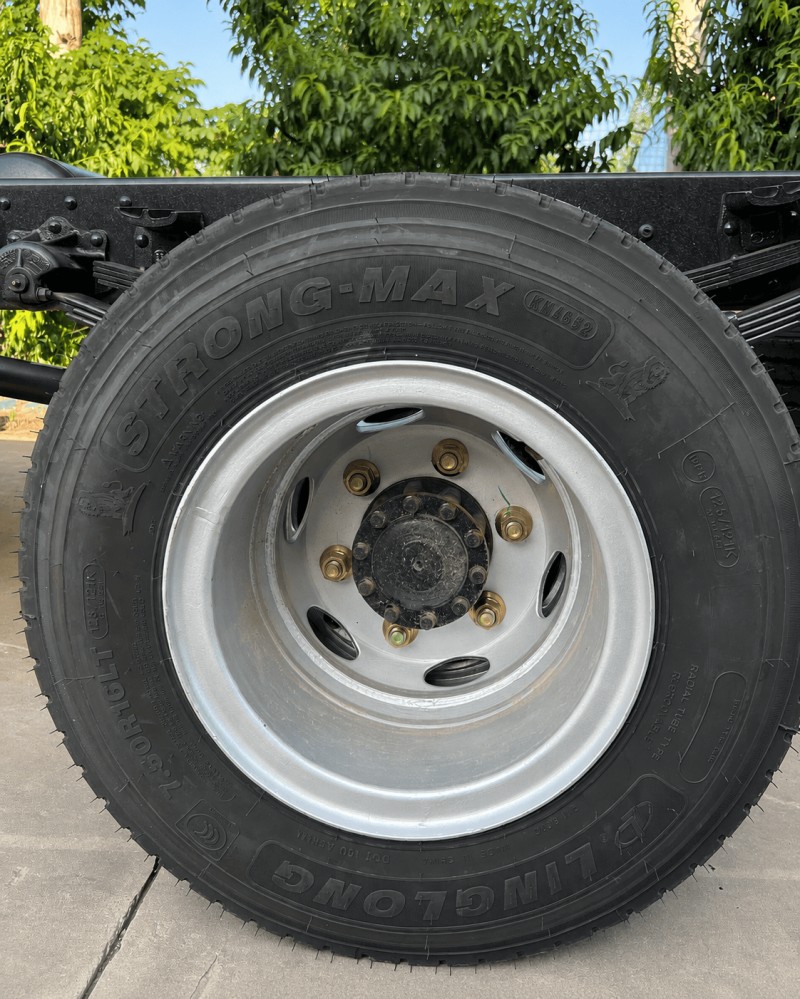

| Tyres | Factory 750 steel-cord radial tyres |
| Brake assistance | Exhaust brake |
| PTO | Factory power take-off |
Detail Display
CUSTOMIZABLE UPPER BODY

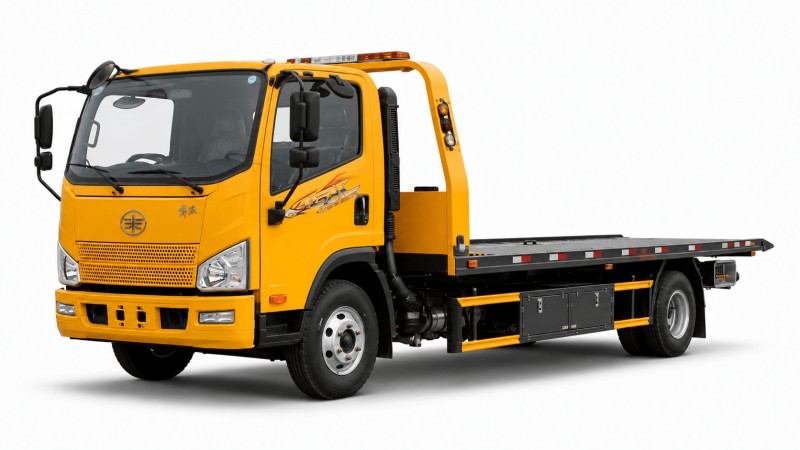

Flatbed Recovery Body for Towing and Vehicle Transport
This FAW Jiefang J6F chassis can be matched with a flatbed recovery upper body for roadside assistance, vehicle transport, equipment loading, and towing service. The factory PTO is suitable for hydraulic systems, winch operation, and optional rear underlift configuration.
Flatbed upper body for vehicle loading and transport
Optional rear underlift for one-truck-two-car recovery
Hydraulic operation system matched with factory PTO
Winch capacity can be configured according to customer demand
Suitable for towing companies, repair shops, fleet service providers, and roadside assistance operators
Need FOB Price & Shipping Cost?
Send us your destination port, required flatbed capacity, and towing application. We will recommend the suitable chassis and upper body configuration.
