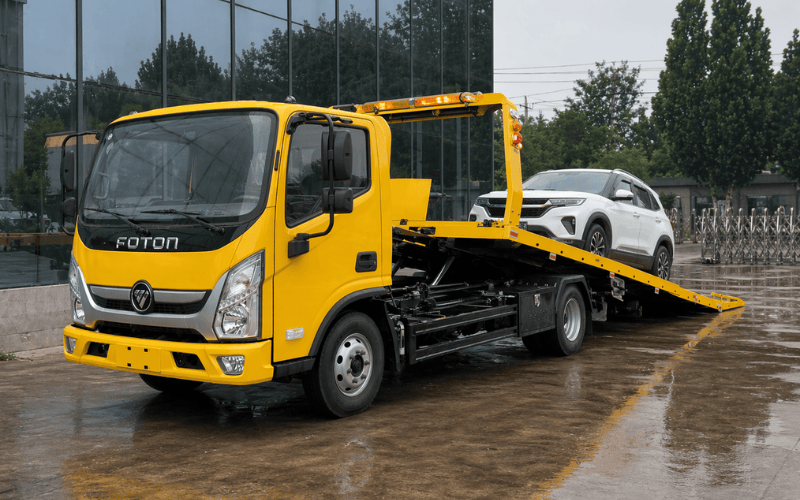

Foton Aoling 146HP Flatbed Tow Truck Manufacturer | Recovery Vehicle with Sunken Platform
- Towing broken-down cars & trucks from highways
- Transporting excavators, forklifts & construction machinery
- Loading equipment with a low ramp angle — easier & safer
- Long-distance recovery runs supported by a 150L fuel tank
Description
146 HP Strong power for loaded recovery work and uphill operation
5T Rear Axle Heavy-duty axle configuration for stable towing and recovery
3600 mm Long wheelbase for a larger platform and more stable operation
Chassis Highlights

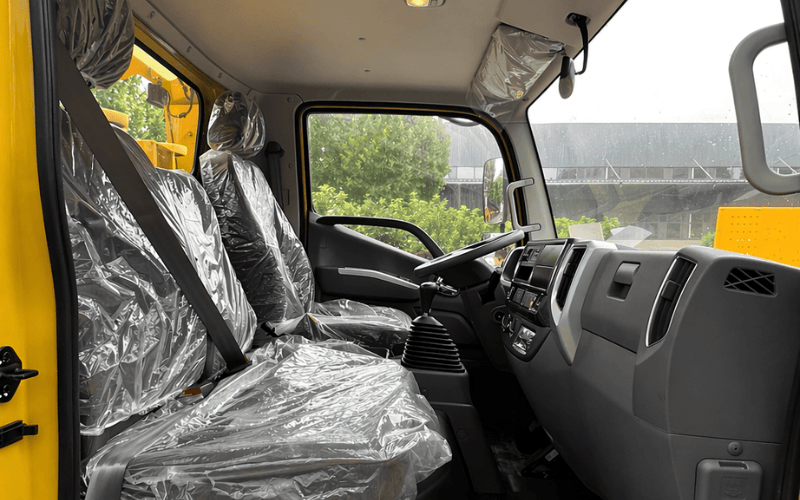

Spacious 1,880 mm cab
The wide cab gives the driver more working space for long recovery jobs. Factory A/C, power windows, central locking, and an air-cushion suspension seat are fitted as standard.

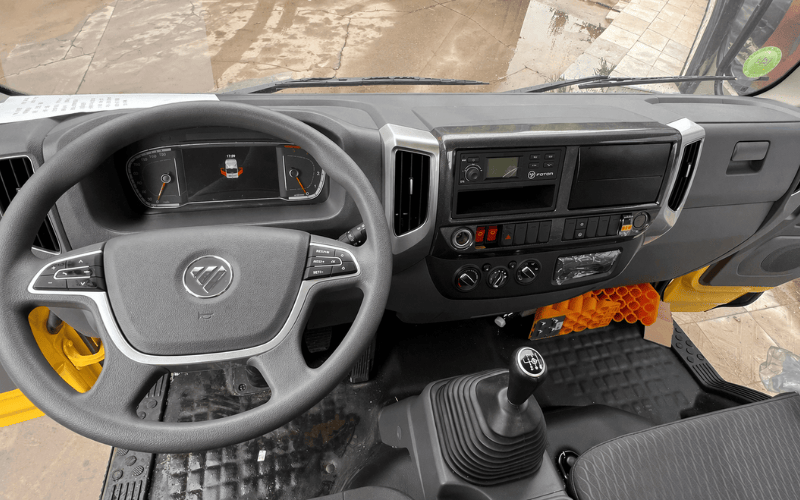

Modern dashboard & multifunction steering
Digital instrument cluster, multifunction steering wheel controls, and a clear switch layout help the driver operate the truck more easily during daily recovery work.

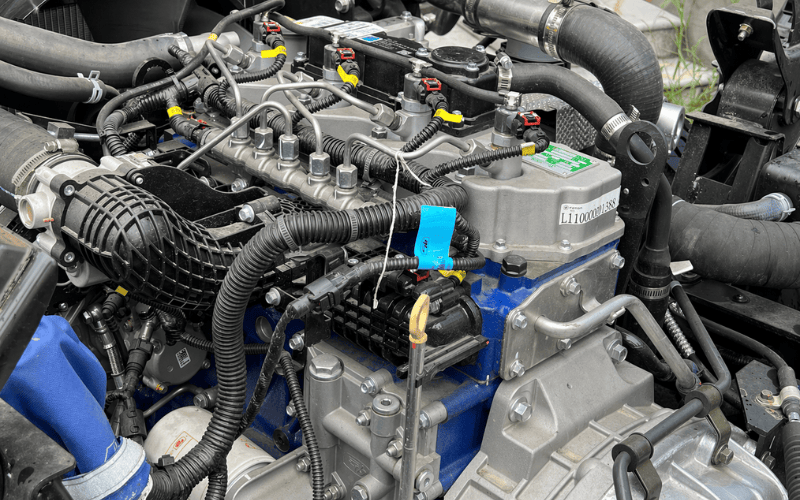

Reliable Yunnei engine — 146 HP, 340 N·m
The Yunnei engine provides strong torque for loaded recovery, hill starts, and daily towing work. The exhaust brake helps improve control on long downhill roads.

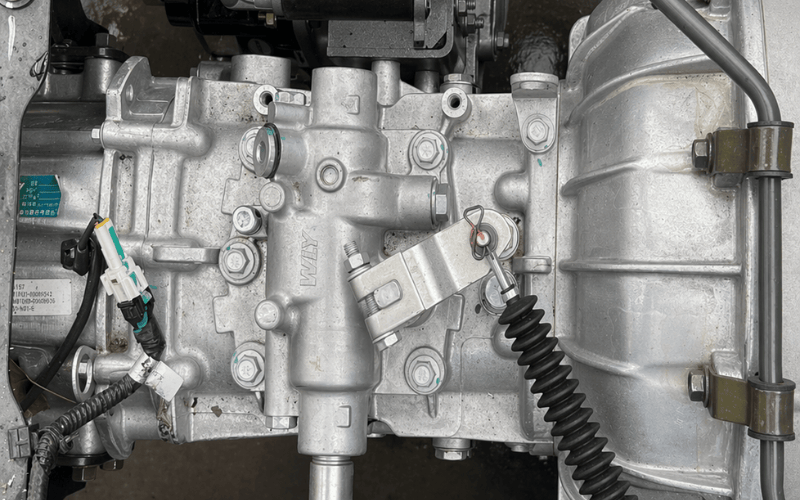

Wanliyang 6-speed gearbox
Six-speed manual transmission matched with a 150 L fuel tank, suitable for medium-distance recovery work and daily road service applications.

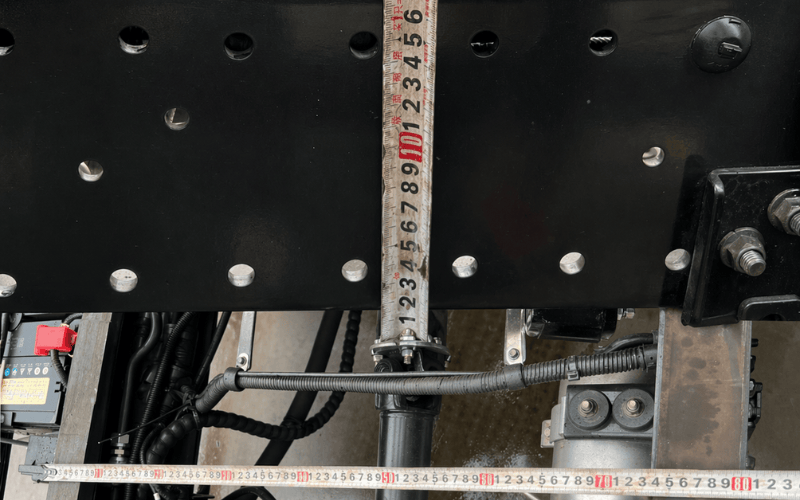

Reinforced dual-layer frame — 180 mm height
The factory dual-layer frame improves structural strength for repeated loading and towing operations. The 800 mm frame gap provides a solid base for the upper body installation.
Wide stance for stable operation — 2,260 mm track
The 2,260 mm track width and 3,600 mm wheelbase help improve driving stability, especially when transporting vehicles or selected small machinery.

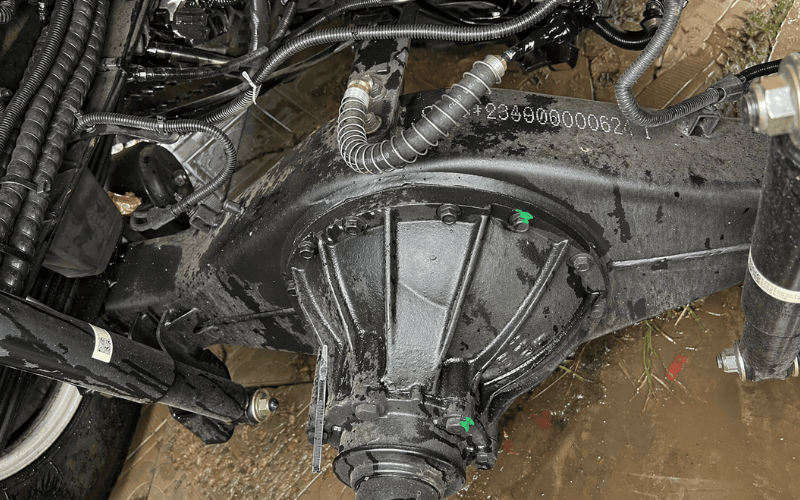

5-ton rear axle · gear ratio 4.333

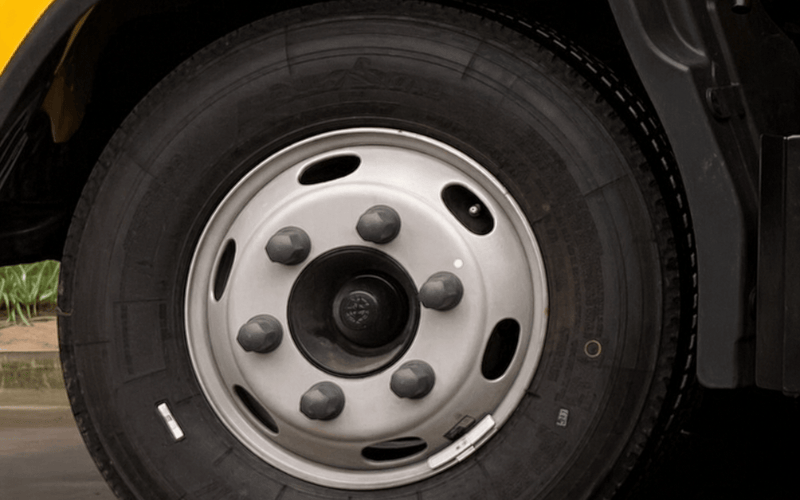

The 5T rear axle balances pulling power and road speed. It is matched with 700 steel-cord radial tyres for durability in daily recovery and transport work.
In Operation
Full Chassis Specifications
| Engine | Yunnei 146 HP |
|---|---|
| Torque | 340 N·m |
| Transmission | Wanliyang 6-speed manual |
| Fuel tank | 150 L |
| Wheelbase | 3,600 mm |
| Track width | 2,260 mm |
| Cab width | 1,880 mm |
| Frame type | Factory dual-layer frame |
| Frame height | 180 mm |
| Frame gap | 800 mm |
| Rear axle | 5T · ratio 4.333 |
| Tyres | 700 steel-cord radial tyres |
FITTED UPPER BODY

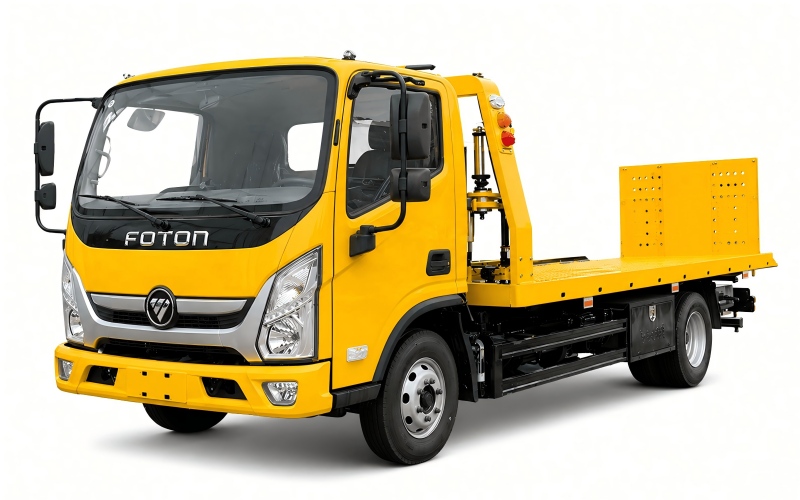

Dongman Patented Sunken Flatbed Platform
This truck is fitted with Dongman's patented sunken flatbed platform. The sunken structure helps lower the ramp angle, making vehicle loading easier and safer. Combined with the Foton 3,600 mm wheelbase, the platform provides a longer and more stable loading deck for recovery and transport applications.
Patented sunken platform structure
One-piece cold-roll sub-frame
700L high-strength steel
Full-length slide rail
Optional 6T / 8T upper body configuration
Need FOB Price & Shipping Cost?
Send us your destination port, required platform capacity, and target application. We will recommend the suitable chassis and upper body configuration.
