Dongman Foton Aoling Tow Truck: CE-Certified Recovery Vehicle for Mining & Logistics
- 151HP Yunnei Engine
- Reinforced Double-Layer Chassis
- 3600mm Long Wheelbase
- 5-Ton Rear Axle
Description

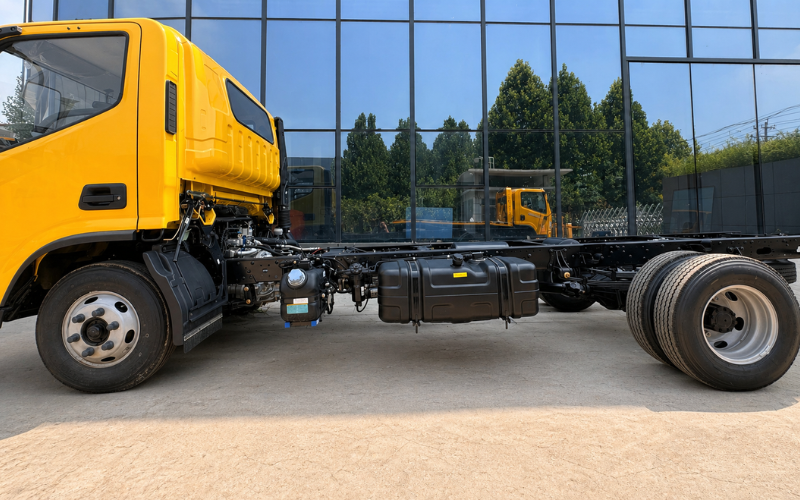

Foton Aoling Jieyun Mid-Body Flatbed Wrecker Truck Chassis
This Foton Aoling Jieyun mid-body chassis is designed for flatbed wrecker truck and road recovery applications. It features a 1,880 mm mid-size cab, Yunnei 151 HP engine, optional 6-speed or 8-speed transmission, factory dual-layer straight frame, 3,600 mm long wheelbase, widened 2.26 m track, and 5-ton rear axle for stable towing and daily recovery work.
151 HP Yunnei engine with 400 N·m torque
3600 mm Long wheelbase for a stable flatbed body
5T Rear Axle Rear axle ratio 4.333 for recovery applications

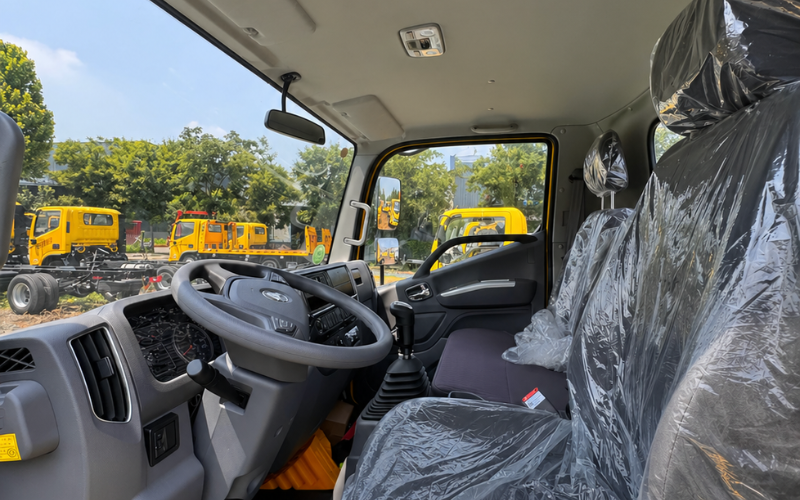

Cab Configuration
1,880 mm mid-size cab
The 1,880 mm mid-body cab provides a practical driving space for road recovery, vehicle transport, and daily towing work.

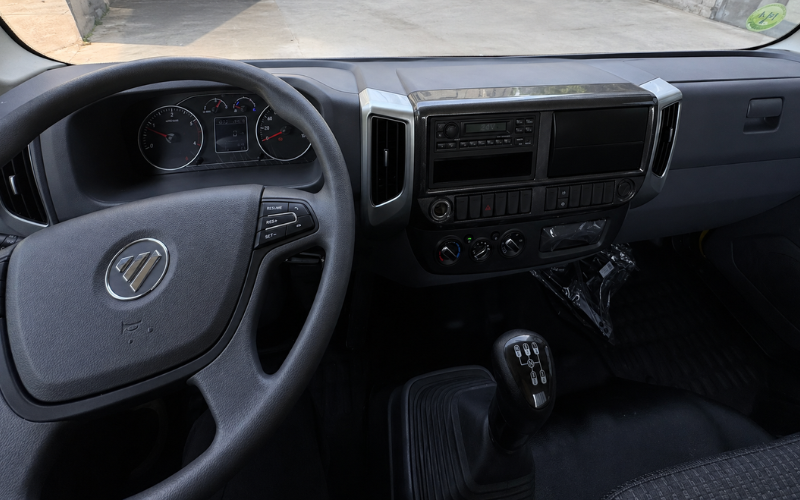

Central locking, power windows, and multifunction steering wheel
Driver-friendly cab configuration helps improve daily operation convenience. The multifunction steering wheel and cruise control are suitable for medium-distance transport and recovery routes.

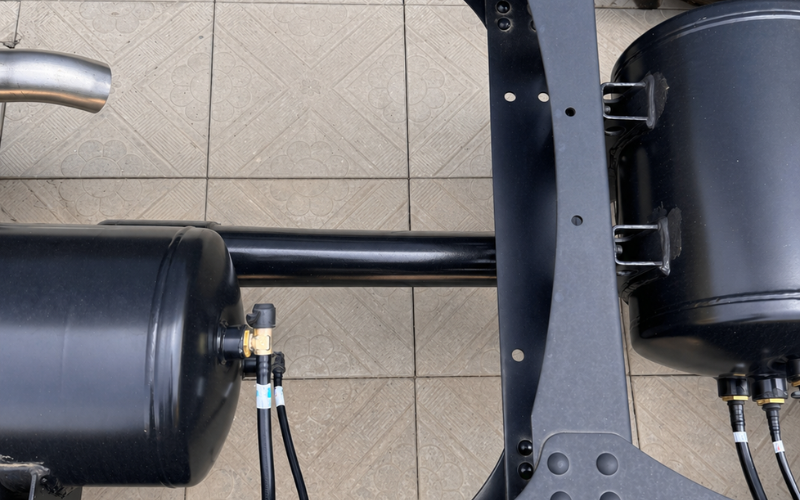

Air brake and cruise control
Air brake configuration provides stronger braking reliability for loaded operation. Cruise control helps reduce driver fatigue during long-distance movement.
Suspension seat and factory air conditioning
The suspension seat and factory A/C improve driving comfort, especially for recovery operators working long hours.
Engine & Transmission

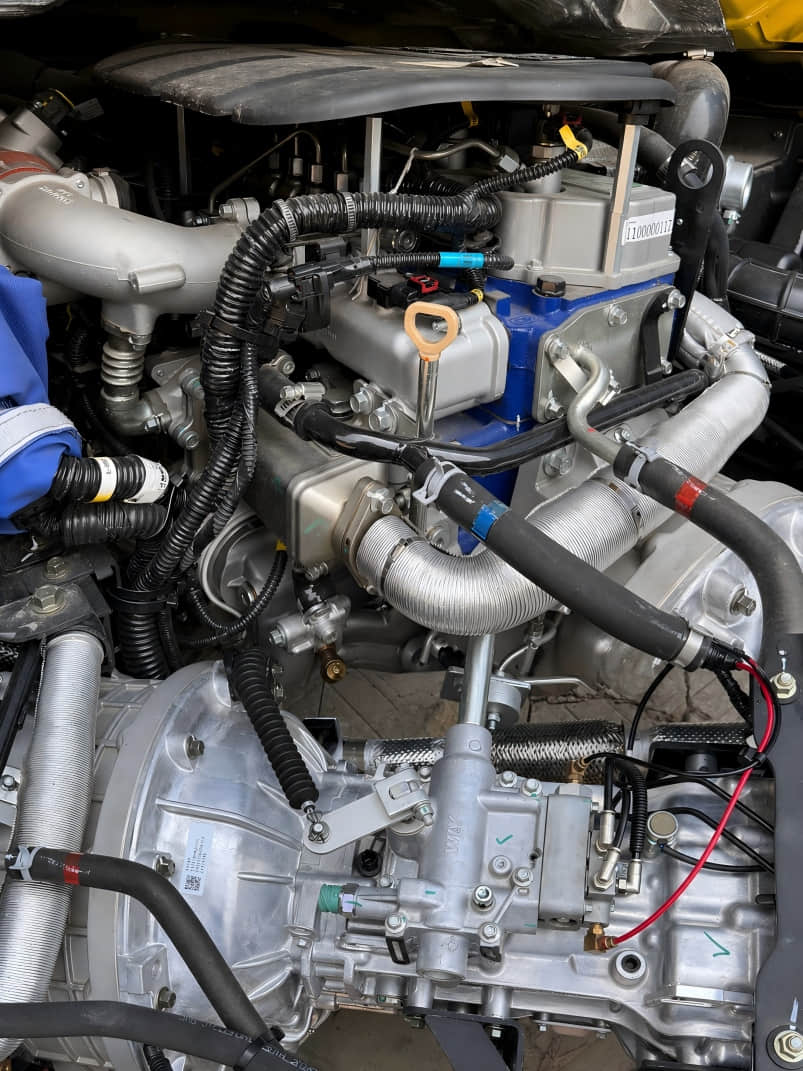

Yunnei 151 HP engine with 400 N·m torque
The Yunnei 151 HP engine provides strong torque output for daily recovery work, loaded vehicle transport, and uphill driving conditions.
Wanliyang 6-speed or Fast 8-speed high-low transmission available
Customers can choose the Wanliyang 6-speed gearbox for regular road use, or the Fast 8-speed high-low transmission for stronger adaptability in heavy-load and complex road conditions.
120L fuel tank
The 120L fuel tank supports daily towing, recovery, and short-to-medium distance transport applications.
Frame, Wheelbase & Axle
Factory dual-layer straight frame
The factory dual-layer straight frame improves structural strength and provides a solid foundation for flatbed wrecker upper body installation.
3,600 mm long wheelbase
The 3,600 mm wheelbase supports a longer flatbed platform and improves overall driving stability during vehicle transport.
Widened 2.26 m track
The widened 2.26 m track helps improve lateral stability, especially when the truck is fitted with a recovery flatbed body.

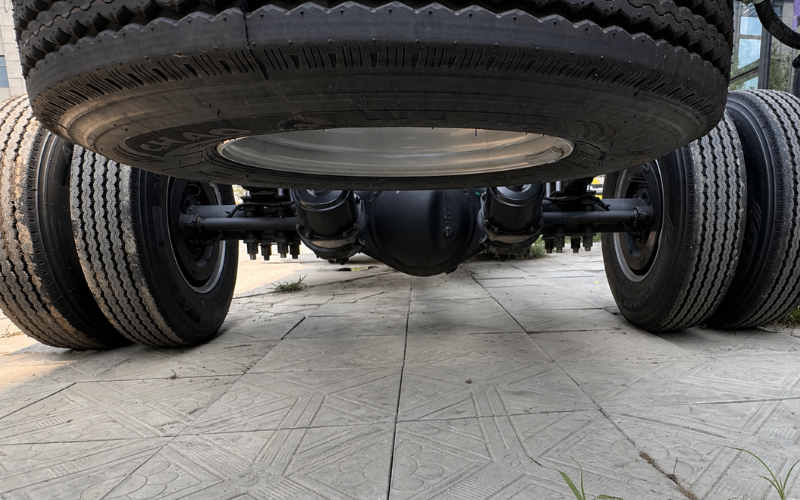

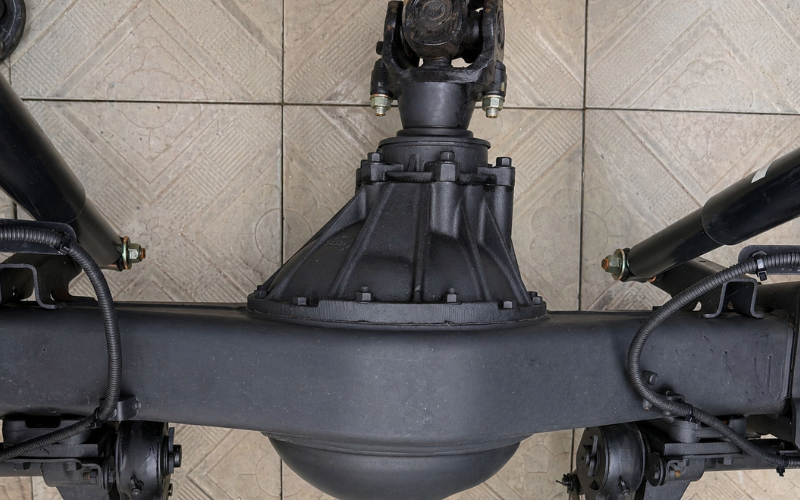

5-ton rear axle with 4.333 ratio
The 5T rear axle and 4.333 ratio provide a practical balance between pulling performance and road speed for recovery truck applications.

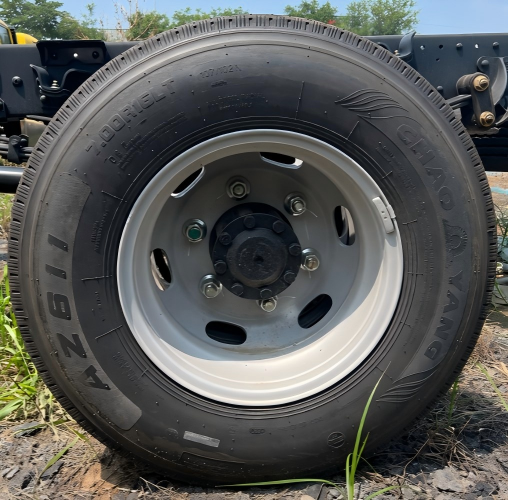

700 steel-cord tyres with 8-bolt axle head
The 700 steel-cord tyres and 8-bolt axle head configuration improve durability and support stable operation under frequent loading conditions.
Full Chassis Specifications
| Cab | 1,880 mm mid-size cab |
|---|---|
| Brake system | Air brake |
| Cab features | Central locking, power windows, multifunction steering wheel, cruise control, suspension seat, factory A/C |
| Engine | Yunnei 151 HP |
| Torque | 400 N·m |
| Transmission | Wanliyang 6-speed manual / Fast 8-speed high-low gearbox optional |
| Fuel tank | 120 L |
| Frame | Factory dual-layer straight frame |
| Wheelbase | 3,600 mm |
| Track width | 2.26 m widened track |
| Rear axle | 5T rear axle |
| Axle ratio | 4.333 |
| Tyres | 700 steel-cord tyres |
| Axle head | 8 bolts |
RECOMMENDED APPLICATION

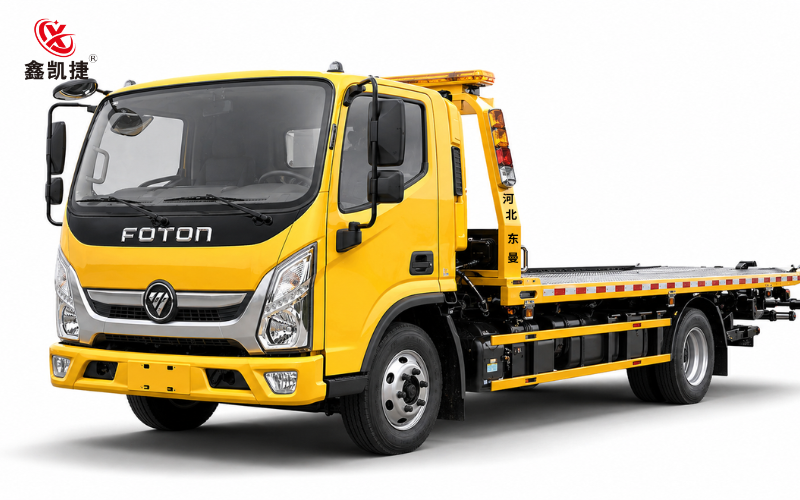

Suitable for Flatbed Wrecker Truck Body
With a 3,600 mm long wheelbase, factory dual-layer frame, widened 2.26 m track, and 5T rear axle, this chassis is suitable for flatbed wrecker truck conversion. It can be matched with a slide-back flatbed, hydraulic winch, rear support legs, warning light system, and tool box according to customer requirements.
Flatbed wrecker truck conversion
Roadside recovery and vehicle transport
Small car and light commercial vehicle towing
Optional hydraulic winch and rear support legs
Custom upper body configuration available
Need FOB Price & Shipping Cost?
Send us your destination port, required flatbed size, and target towing capacity. We will recommend the suitable chassis and upper body configuration.
