J6F 130HP Flatbed Tow Truck Manufacturer for Bulk Orders
- Factory direct supply
- 130HP Weichai engine
- 3600mm wheelbase
- 6-ton rear axle
- Custom flatbed tow truck body
- Suitable for bulk export orders
Description
130 HP Weichai engine
3600 mm Long wheelbase
6T Rear Axle 4.875 axle ratio

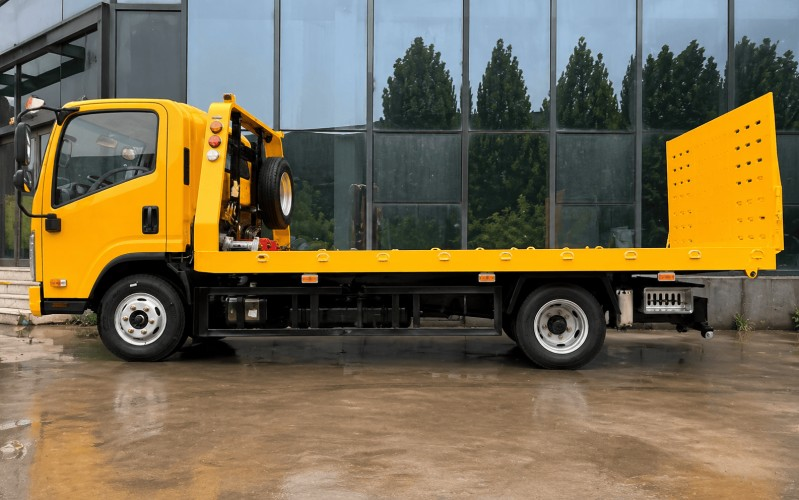

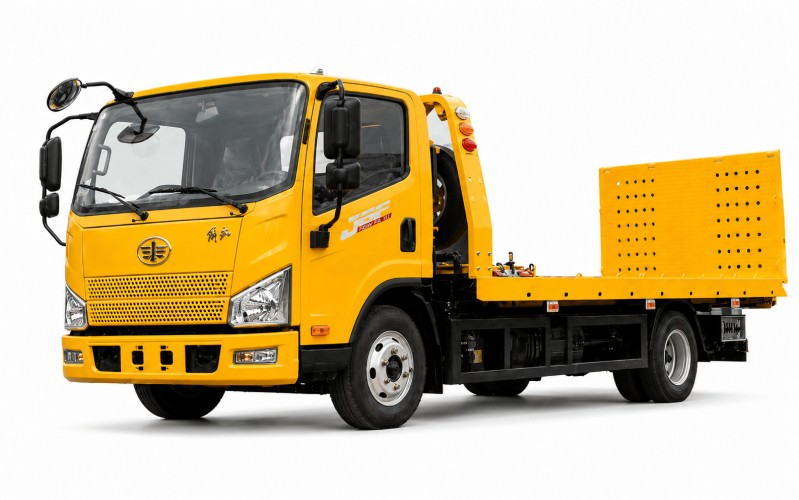

FAW Jiefang J6F Flatbed Wrecker Truck Chassis
This FAW Jiefang J6F chassis is suitable for flatbed wrecker trucks, vehicle recovery trucks, and light-duty vehicle transport applications. It combines a 1900 mm mid-size cab, Weichai 130 HP engine, Wanliyang 6-speed gearbox, reinforced double-layer frame, and 6-ton rear axle for practical daily towing and road rescue work.
With a 3600 mm wheelbase and 2050 mm widened rear track, the chassis provides a stable foundation for flatbed body installation. It is a cost-effective choice for roadside assistance companies, repair shops, vehicle transport businesses, and custom wrecker truck projects.
Core Configuration

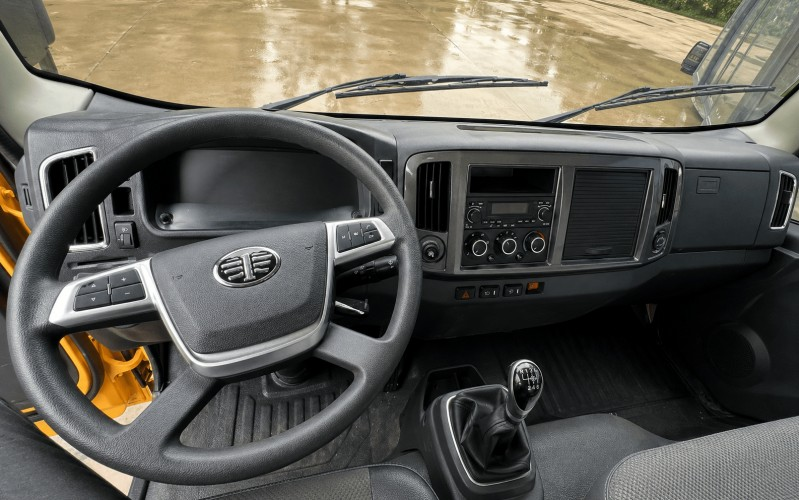

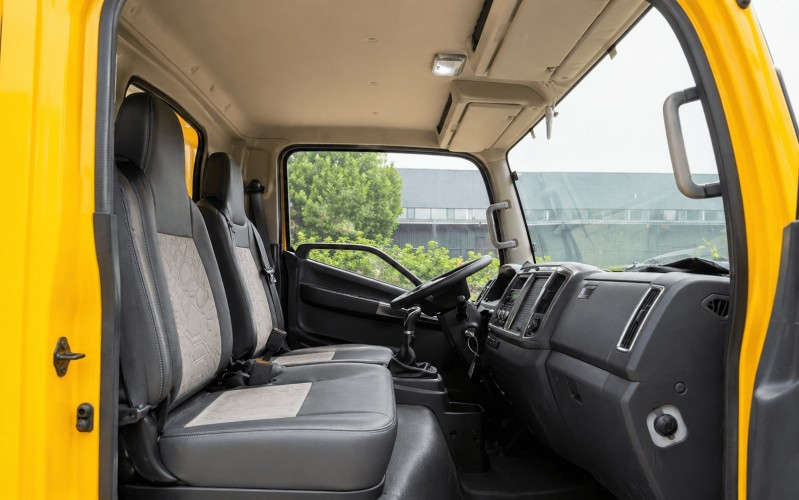

Cab & Driving Comfort
1900 mm mid-size cab with central locking, power windows, multifunction steering wheel, factory A/C, ABS, cruise control, and air brake system.

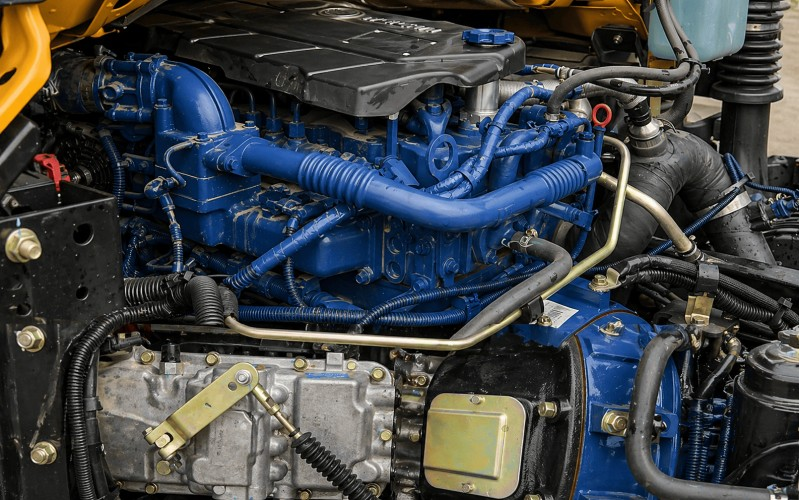

Powertrain
Weichai 130 HP engine matched with Wanliyang 6-speed manual gearbox and 120 L fuel tank, suitable for city recovery and medium-distance vehicle transport.

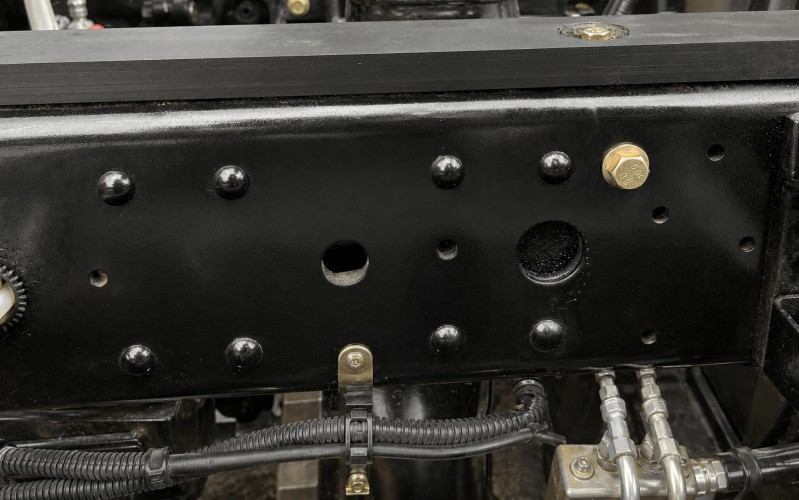

Frame Structure
190 mm high factory double-layer straight-through frame with 800 mm frame opening, providing better support for flatbed wrecker body installation.

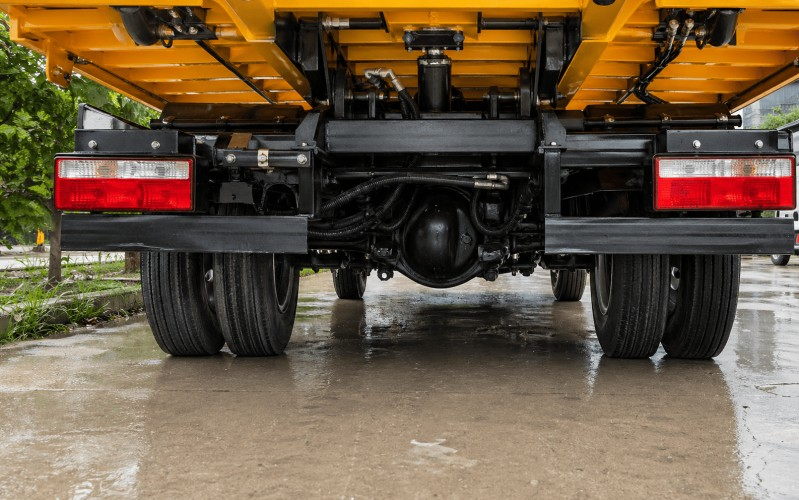

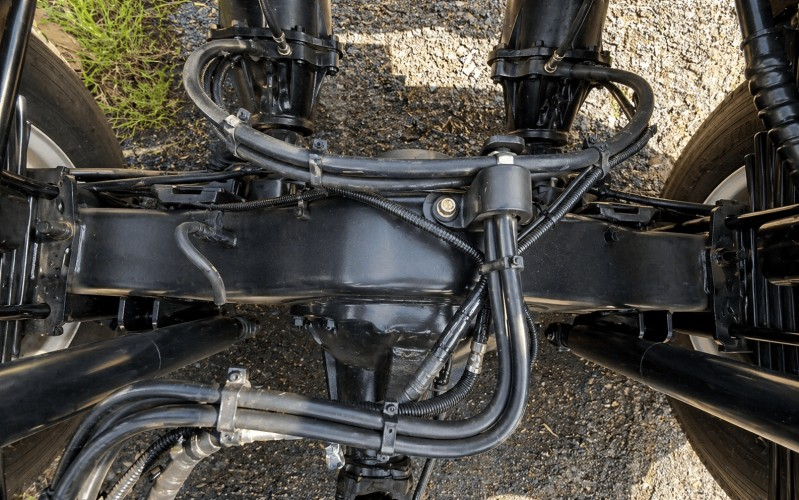

Wheelbase & Rear Axle
3600 mm long wheelbase, 2050 mm widened rear track, 6-ton rear axle, 4.875 ratio, and 7.00 tube-type steel-cord tyres for stable loading and towing work.
Product Details
Chassis Specifications
| Cabin | 1900 mm mid-size cab |
|---|---|
| Cab configuration | Central locking, power windows, multifunction steering wheel, factory A/C |
| Safety system | ABS, cruise control, air brake system |
| Engine | Weichai 130 HP |
| Transmission | Wanliyang 6-speed manual gearbox |
| Fuel tank | 120 L |
| Frame | 190 mm high factory double-layer straight-through frame |
| Frame opening | 800 mm |
| Wheelbase | 3600 mm |
| Rear track | 2050 mm widened rear wheel track |
| Rear axle | 6-ton rear axle, 4.875 ratio |
| Tyres | 7.00 tube-type steel-cord tyres |
APPLICATION
Suitable for Flatbed Wrecker Truck Body
This J6F chassis can be used for roadside vehicle recovery, accident towing, repair shop transport, used car delivery, and customized flatbed wrecker truck projects.
Before Ordering
Please tell us your destination country, required loading capacity, local road conditions, and target vehicle type. We can recommend a suitable chassis and flatbed upper body configuration.
Note: Final specifications may vary according to chassis batch, emission standard, and customer requirements. Please confirm the final configuration before ordering.
Need FOB Price & Shipping Cost?
Send us your destination port and required configuration. We will provide the suitable model, FOB price, shipping reference, and delivery plan.
