JAC Shuailing Q6 Flatbed Tow Truck | 160HP Engine, 6.5T Rear Axle, GB7258 Certified
- 160HP Engine
- 6.5-Ton Rear Axle
- Double-Layer Chassis
- 3600mm Wheelbase
- 2.26m Wide Track
- Comfort Wide Cab
Description

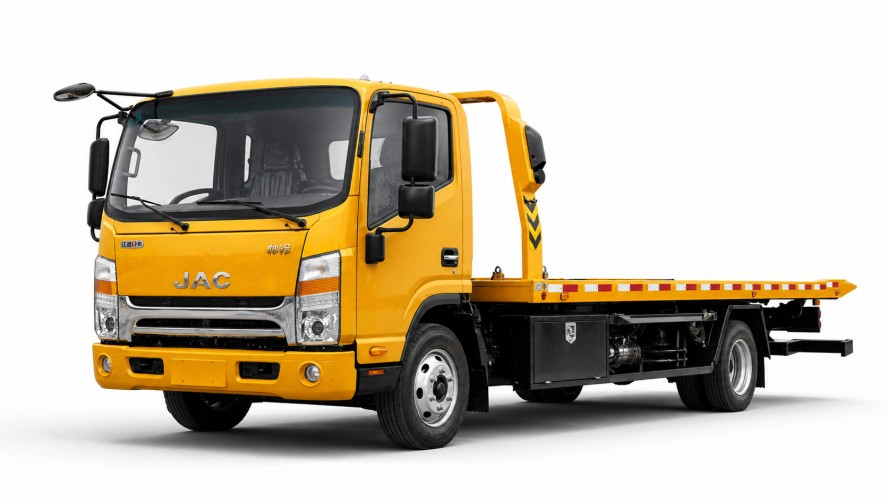

JAC Shuailing Q6 Flatbed Wrecker Truck Chassis
The JAC Shuailing Q6 chassis is equipped with a 2010 mm wide cab, 160 HP engine, reinforced frame, 6.5T rear axle, and 7.00R16 steel-cord tyres. It is suitable for flatbed wrecker, recovery truck, and vehicle transport applications.
160 HP
Ankang engine
460 N·m
High torque output
6.5T
Heavy-duty rear axle
3600 mm
Long wheelbase
Product Display
Main Features
2010 mm Wide Cab
Wider cab design provides a more comfortable driving space for daily transport and recovery work.

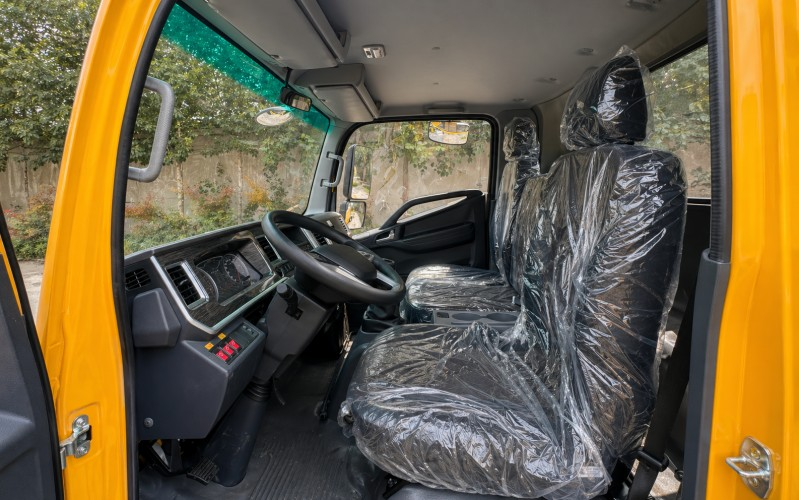

Comfortable Interior

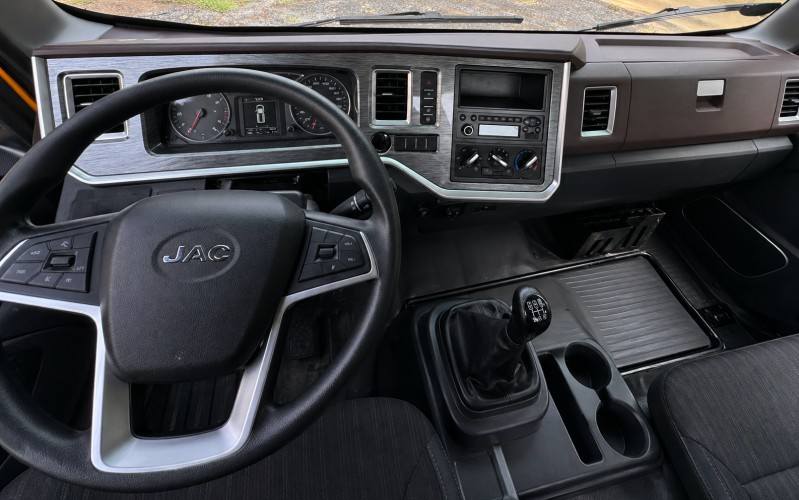

Equipped with leather-like dashboard, central locking, power windows, multifunction steering wheel, Songzhi A/C, and air suspension seat.
Safe Driving Configuration
Air brake, ABS, cruise control, heated rearview mirrors, and Fuyao double-layer glass improve driving safety and operating comfort.

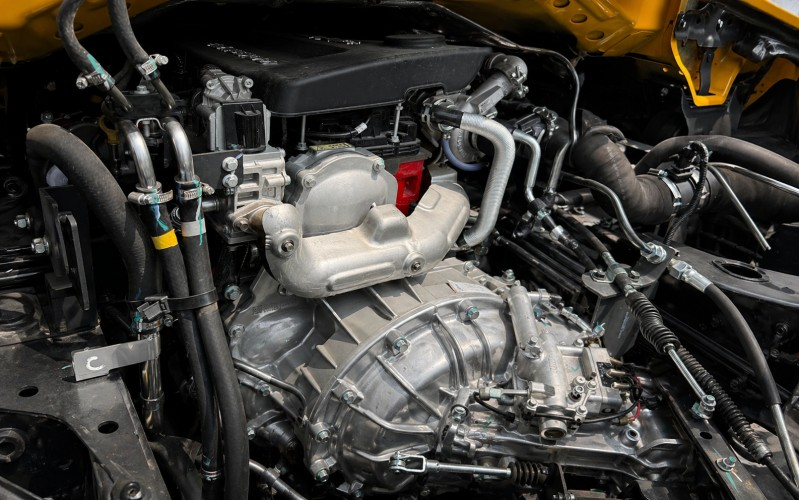

Strong Powertrain
Ankang 160 HP engine with 460 N·m torque, matched with Wanliyang 8-speed high-low gearbox for stronger loaded operation.
Reinforced Frame
Factory dual-layer straight-through frame with partial triple-layer reinforcement provides a solid base for upper body installation.

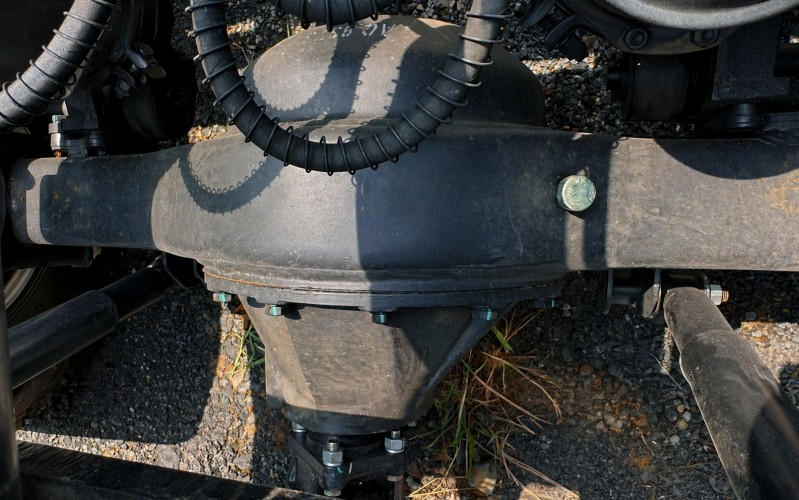

Heavy-Duty Rear Axle
6.5T rear axle, 4.333 ratio, widened track, and 12 hub bolts help improve loaded driving stability.
Chassis Specifications
| Chassis Model | JAC Shuailing Q6 |
|---|---|
| Cab | 2010 mm wide cab |
| Brake System | Air brake / spring parking brake |
| Interior | Silver trim, leather-like dashboard, central locking, power windows, multifunction steering wheel |
| Safety & Comfort | ABS, cruise control, heated rearview mirrors, Songzhi A/C, Fuyao double-layer glass, air suspension seat |
| Clutch | Branded clutch |
| Engine | Ankang 160 HP engine |
| Max Torque | 460 N·m |
| Transmission | Wanliyang 8-speed high-low manual gearbox |
| Gearbox Maintenance | 60,000 km long oil-change interval |
| Fuel Tank | 100 L |

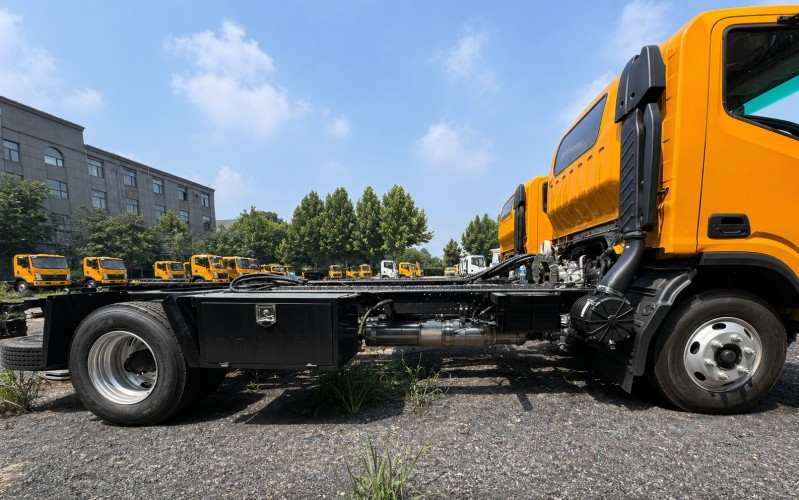

| Frame | Factory dual-layer straight-through frame with partial triple-layer reinforcement |
| Frame Inner Width | 860 mm |
| Wheelbase | 3600 mm |
| Track Width | 2260 mm widened track |
| Rear Axle | 6.5T heavy-duty rear axle |
| Rear Axle Ratio | 4.333 |
| Tyres | 7.00R16 steel-cord tyres |
| Hub Bolts | 12 bolts |
APPLICATION
Suitable for Flatbed Wrecker Conversion
With a high-torque engine, reinforced frame, 3600 mm wheelbase, widened track, and 6.5T rear axle, this chassis provides a strong foundation for flatbed wrecker, road rescue, and vehicle transport truck applications.
Need Price & Configuration Details?
Send us your destination port, required platform size, and working application. We will recommend the suitable chassis and upper body solution.
